Used 2540×25mm Spiral pipe machine
Pipe diameter: φ508-φ2540mm, Wall thickness: 5-25.4mm, Pipe length: 8m-36m.

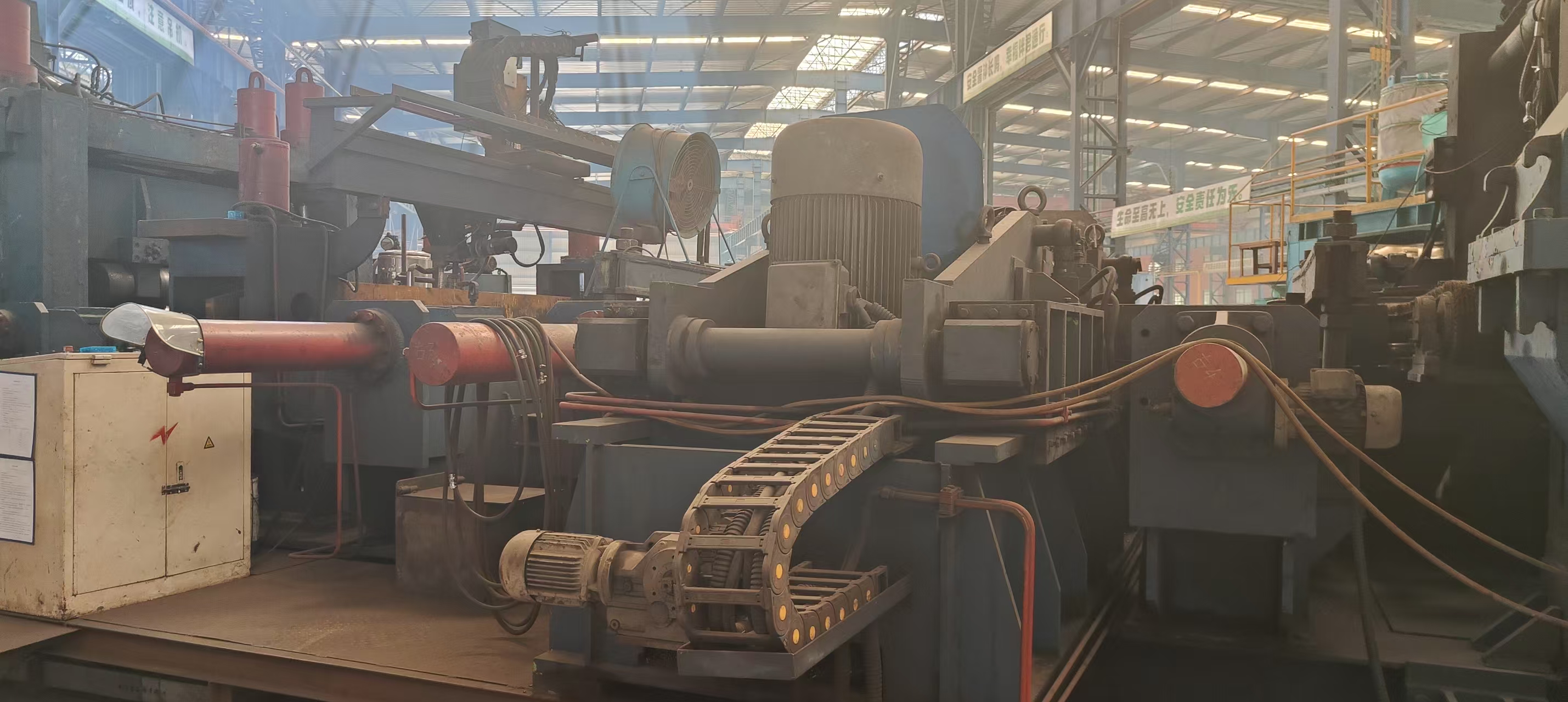

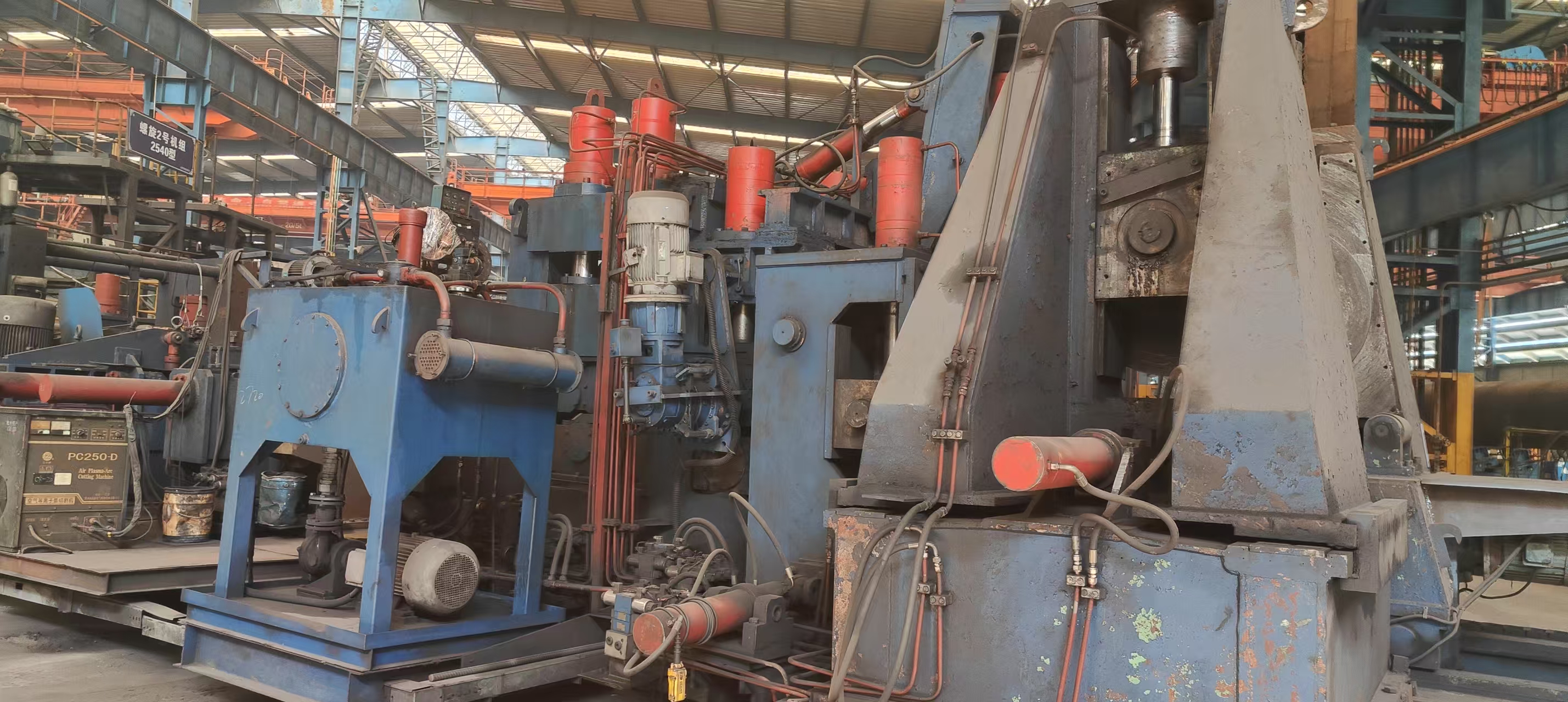

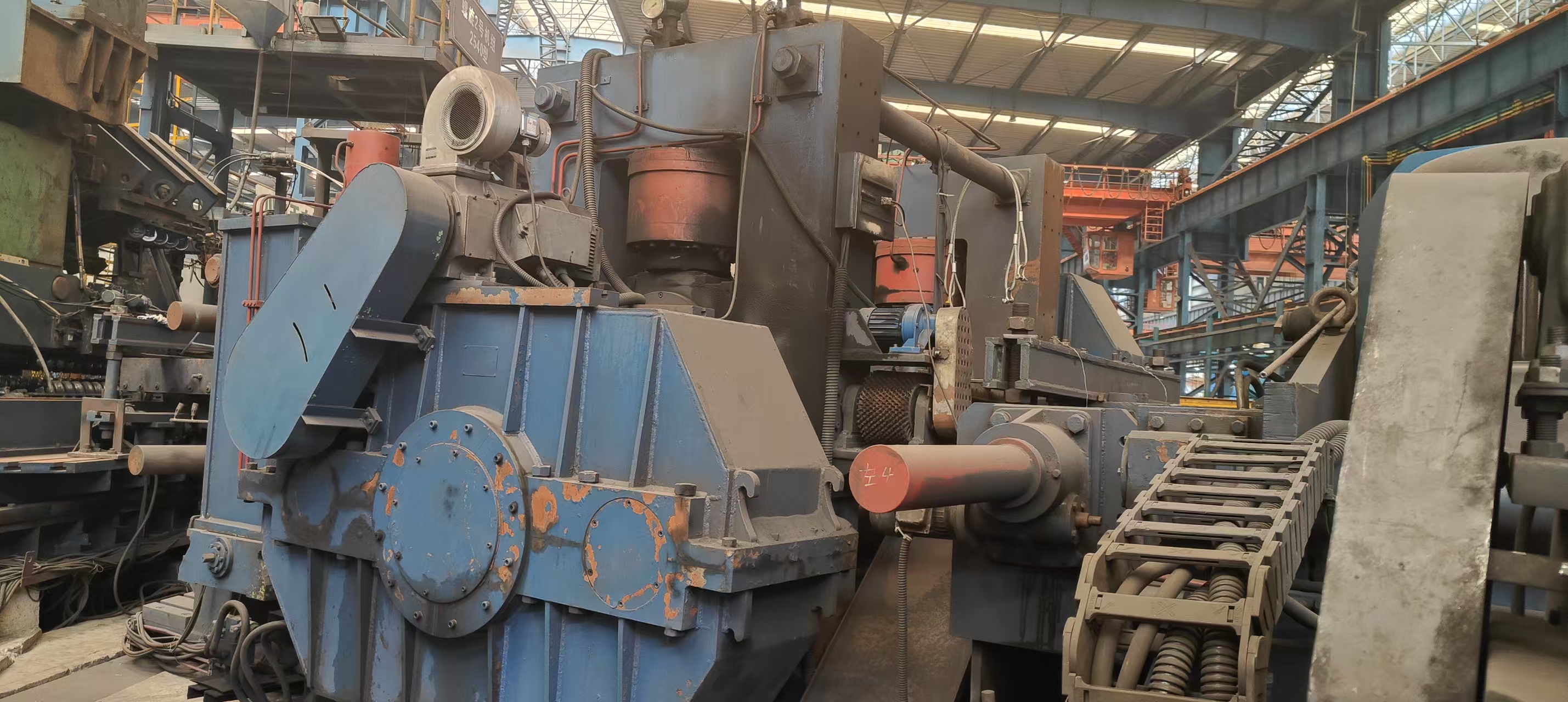

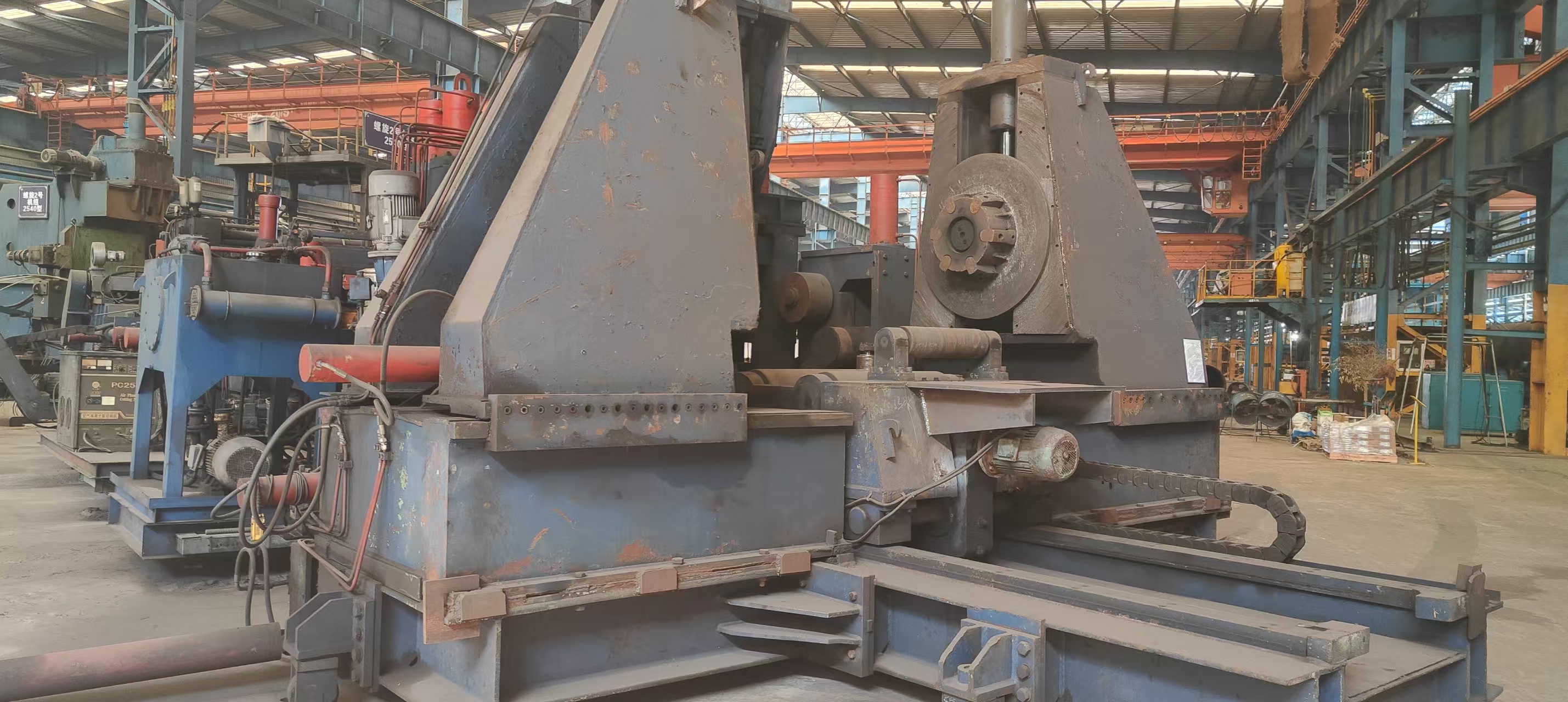

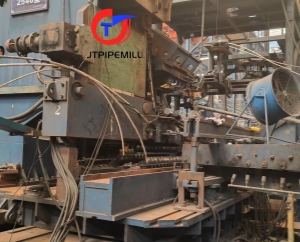

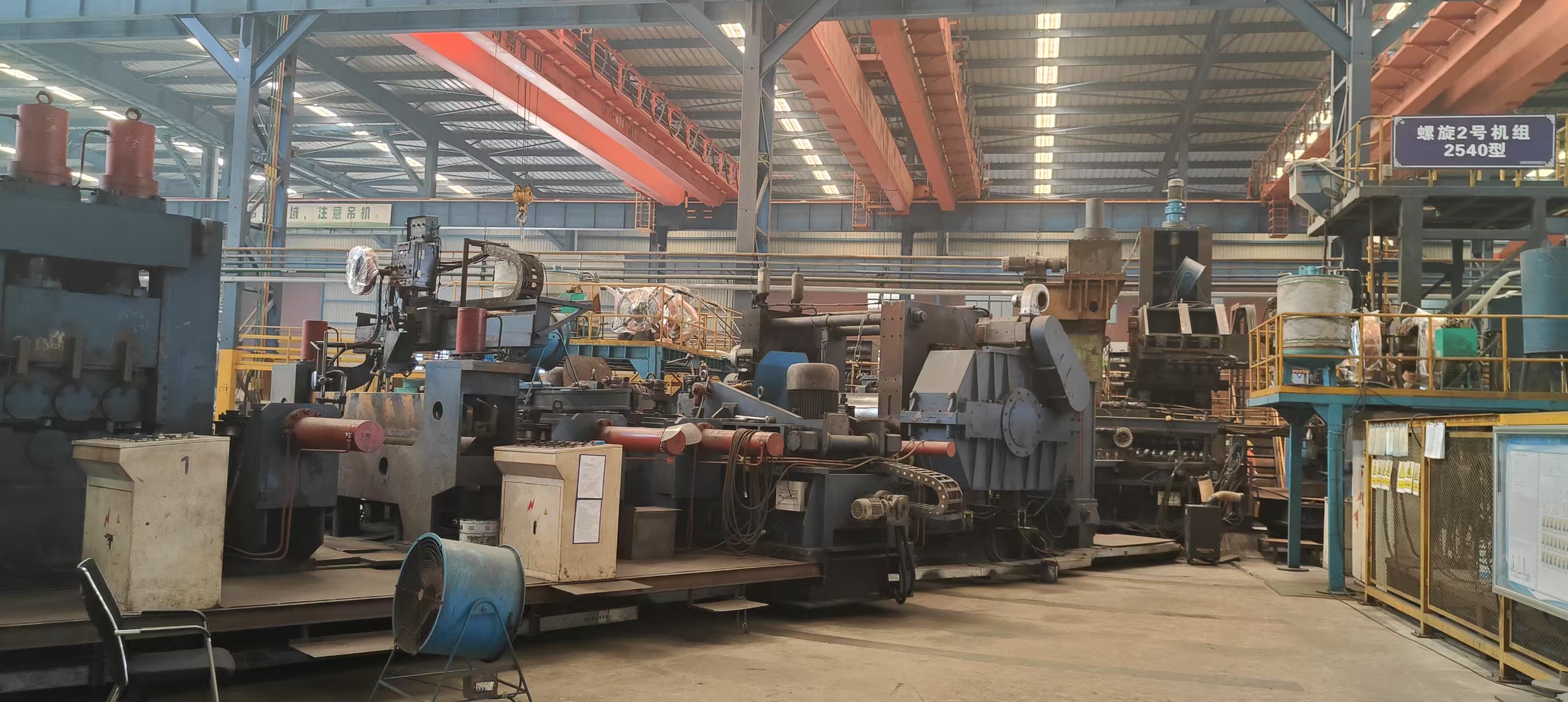

Used φ2540×25.4mm Spiral pipe machine
This is one set of complete second hand spiral pipe machine for sale, This spiral pipe machine can produce φ2540mm pipe diameter with 25.4mm wall thickness.
1. Background
Manufacturer: Tianjin, China.
Manufacture year: 2012
Condition: Inline and working condition
Location: China
2. Pipe specification
Material: Q235 steel grade
Spiral Pipe diameter: φ550~φ2540mm
Spiral Pipe Wall thickness: 5~25.4mm
Spiral Pipe length: 8~36m
3. Coil specification
Steel coil material: Q235 steel grade
Steel coil thickness: 5~25.4mm
Steel coil I.D.: φ630~φ760mm
Steel coil O.D.: φ1400~φ2000mm
Steel coil width: 1000~1800mm
Coil weight: ≤35 Tons
4. Machine specification
Machine processing arrangement: Left feeding direction
Forming technology: Front bridge swing and non-continuous production
Forming method: 3-roll bending plate and forming all inclusive, sizing adjusted by external control roller, auxiliary universal forming.
Forming speed: Max.3.0 m/min
Forming angel: 40°~80°
Butt welding mode: Machine stopped and none running during butt welding of coil, semi-automatic submerged arc welding.
Welding mode: Internal welding double wires submerged arc automatic welding
External welding double wires submerged arc automatic welding
Electric voltage: 220/380V, 50HZ
Compressed air pressure: -8～+45℃
