Second hand φ2020×15mm Spiral pipe machine for sale
Pipe diameter: φ508-φ2020mm, Wall thickness: 5-15mm, Pipe length: 8m-12m.
Used φ2020×15mm Spiral pipe machine

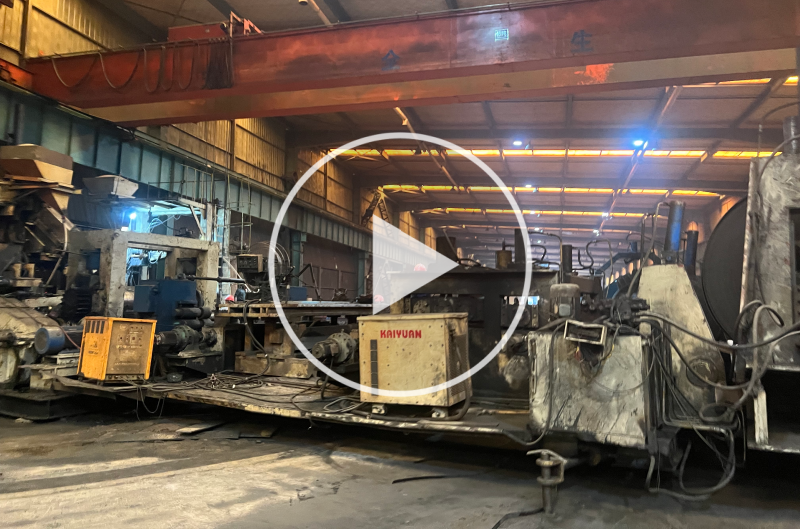

Clike it: Working video
This is one set of complete second hand spiral pipe machine for sale, This spiral pipe machine can produce φ2020mm pipe diameter with 15mm wall thickness.
1. Background
Manufacturer: Hebei, China.
Manufacture year: 2012
Condition: Inline and working condition
Location: China
2. Pipe specification
Material: Q235 steel grade
Spiral Pipe diameter: φ508~φ2020mm
Spiral Pipe Wall thickness: 5~15mm
Spiral Pipe length: 8~12m
3. Coil specification
Steel coil material: Q235 steel grade
Steel coil thickness: 5~15mm
Steel coil I.D.: φ630~φ760mm
Steel coil O.D.: φ1400~φ1800mm
Steel coil width: 750~1500mm
Coil weight: ≤32 Tons
4. Machine specification
Machine processing arrangement: Left feeding direction
Forming technology: Front bridge swing and non-continuous production
Forming method: 3-roll bending plate and forming all inclusive, sizing adjusted by external control roller, auxiliary universal forming.
Forming speed: Max.2.7 m/min
Forming angel: 40°~80°
Butt welding mode: Machine stopped and none running during butt welding of coil, semi-automatic submerged arc welding.
Welding mode: Internal welding double wires submerged arc automatic welding
External welding double wires submerged arc automatic welding
Electric voltage: 220/380V, 50HZ
Compressed air pressure: -8～+45℃
