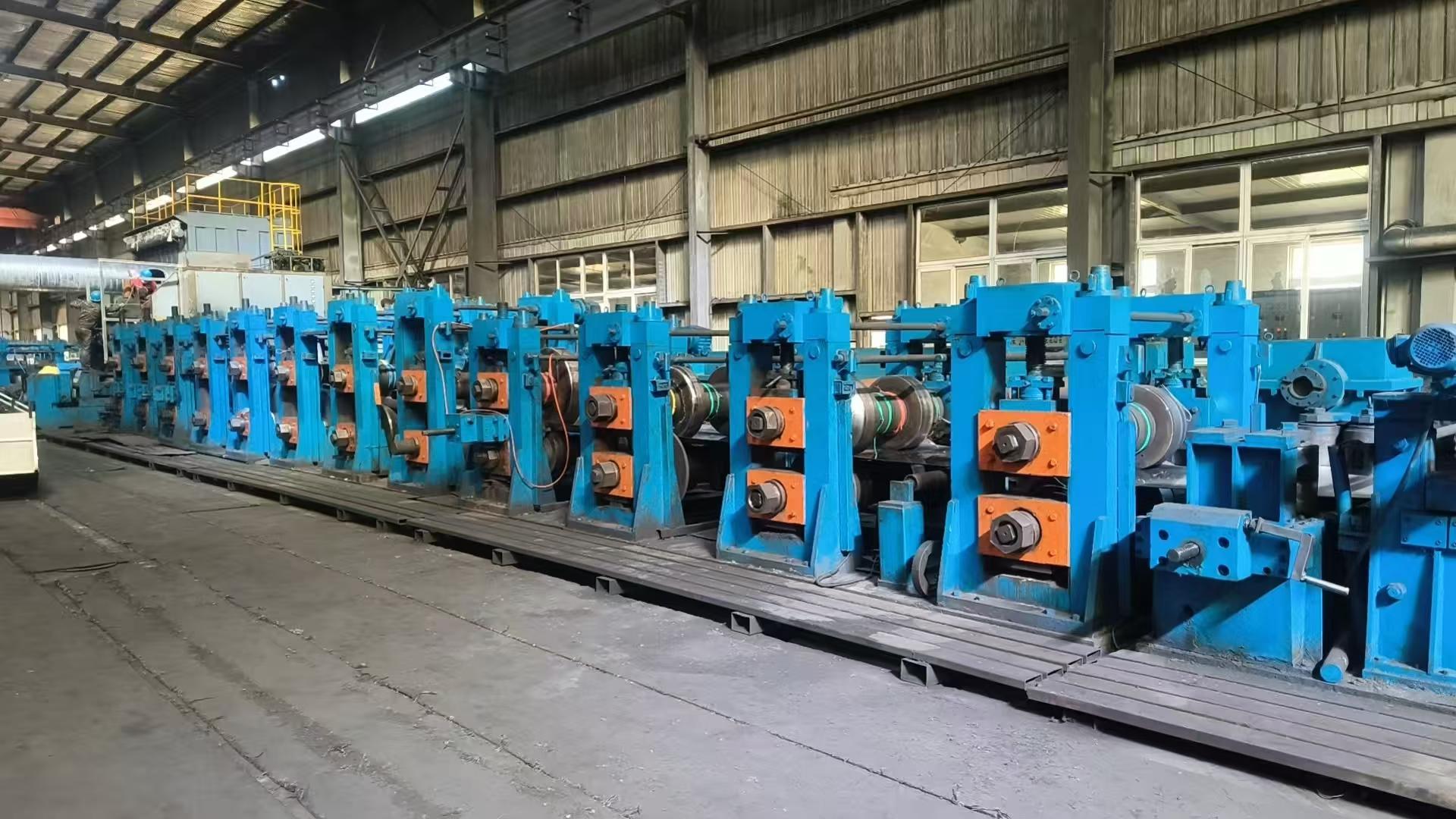

300×300×12.7mm Square and Rectangular tube making mill
Tube size: Max.300×300mm. Wall thickness: Max.12.7mm.
1. General specifications
1.1. Product specifications:
Round tube: 100×100-300×300mm
Wall thickness: 4.0mm-12.7mm (Q235 steel grade, Ys≤250MPA)
Pipeline length: Maximum 6–12 meters (±3 mm)
1.2. Coil specifications:
Coil material: Carbon steel Q195, Q235, Q345
Coil inner diameter: Φ580/Φ760mm
Coil outer diameter: Φ1400mm – Φ2000mm
Maximum weight: 25 tons
Strip width: 400mm – 1200mm (±0.5mm)
1.3. Rolling mill specifications:
Forming method: cold rolling
Forming welding speed: 0-20m/min

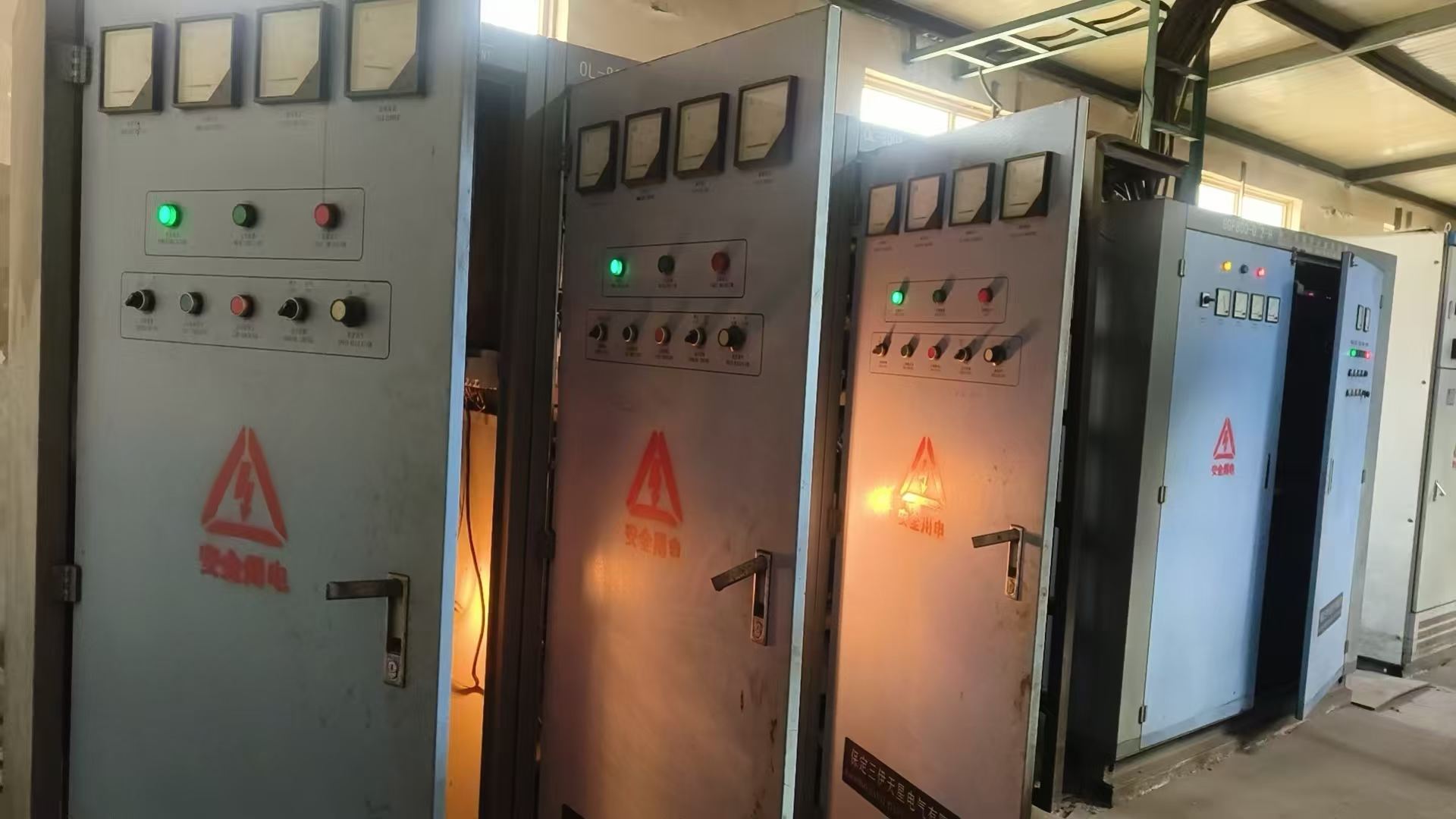

Welding machine: solid-state high frequency 1200KW
Installed capacity: 5000KVA
1.4. Source supply:
Dynamic power: as required
Control power: as required
Feeding direction: from left to right
Compressed air: flow: 10m3/min Pressure: 4-7Kg/cm2
Cooling water: HF: 30m3/H; rolling mill: 40m3/H; pressure: 3-5 kg/cm2
Circulating water volume: about 1~3m3/H
Water quality: emulsion
Water tank volume: 120 m3
1.5. Workshop requirements
Height: ≥8m
Length: 120m
Width: 24m
2. Production process
Coil preparation-uncoiling-pinching and leveling-end shear welding machine-accumulator-guide roller-forming section-high frequency welding machine-deburring-water cooling-sizing section-flying cutting-conveyor
