Second hand 1620x18mm spiral pipe machine

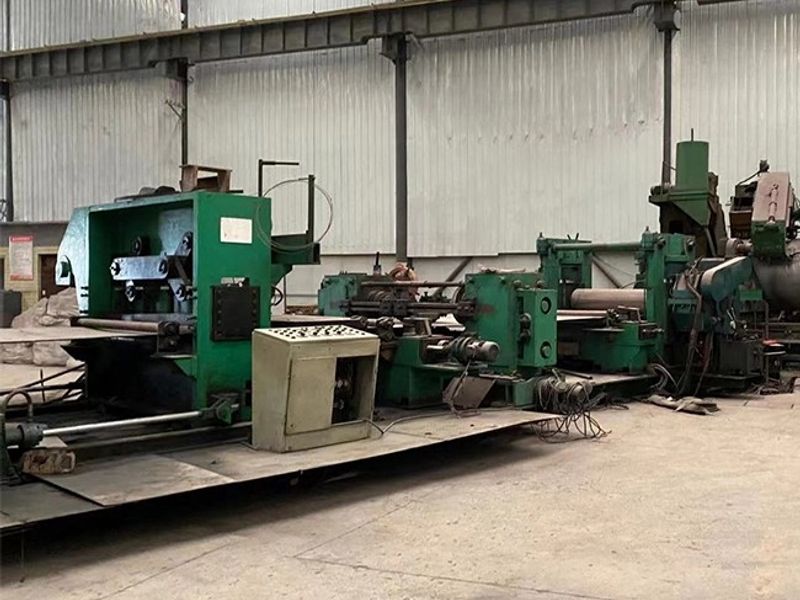

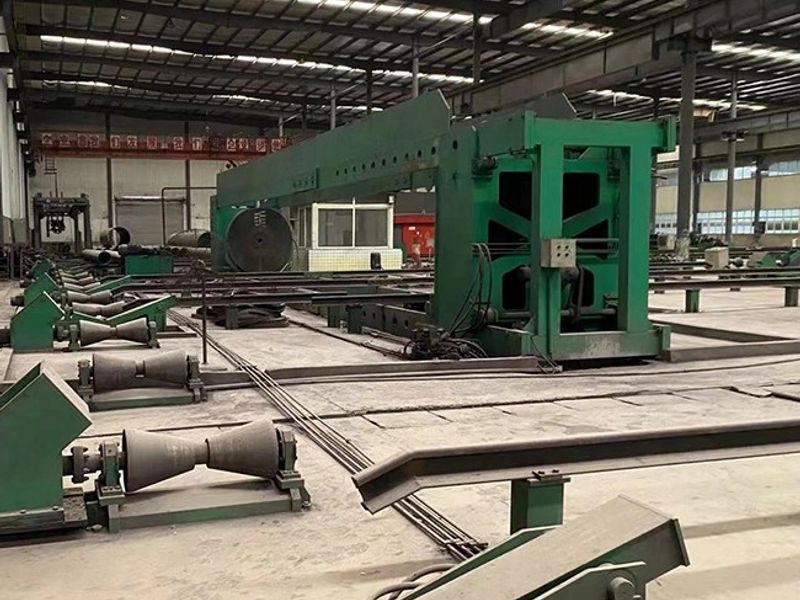

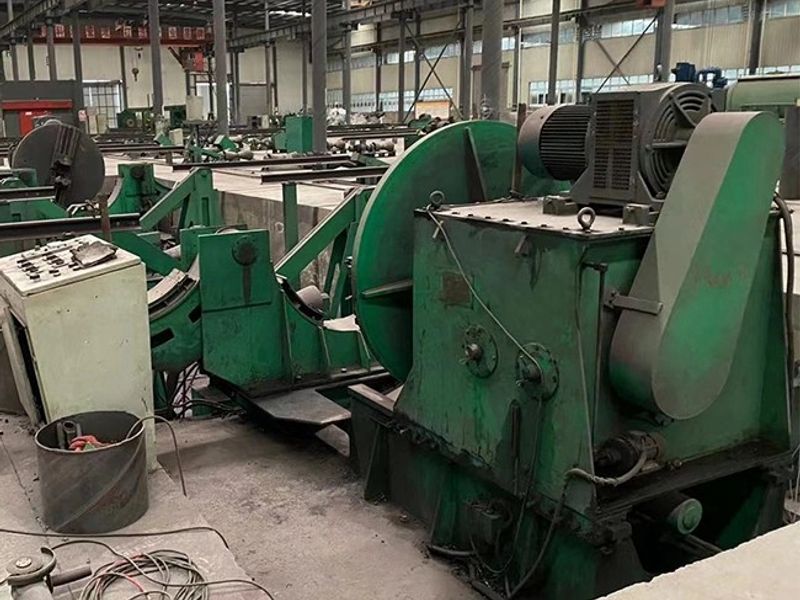

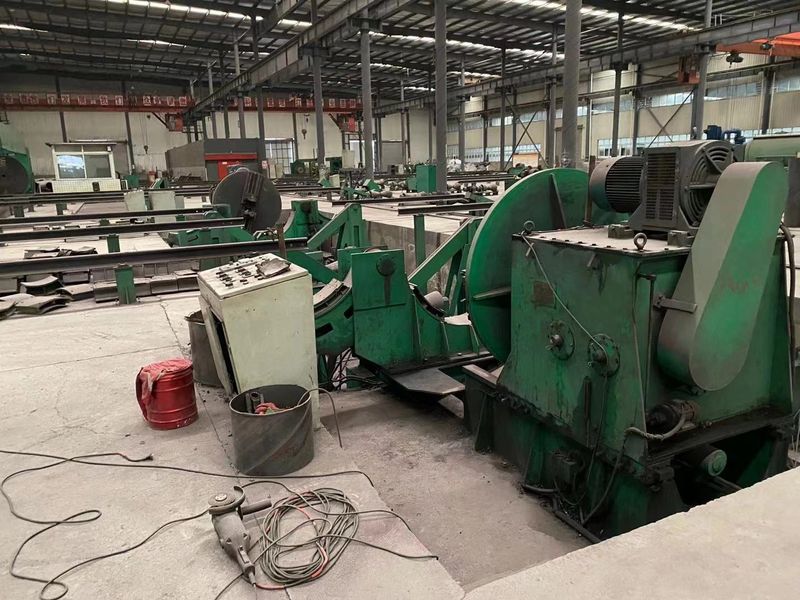

Second hand 1620-18mm spiral pipe machine
- Used Ф1620-18 mm Spiral Tube Machine
1. Wire technical specifications
Material: Q235, Q345
Coil thickness: 5-18 mm
Coil width: 600-1500 mm
Coil inner diameter: Φ508-Φ760 mm
Coil outer diameter: Φ1200-Φ1800 mm
Maximum coil weight: 25 tons
2. Pipeline technical specifications
Pipeline outer diameter: Φ325 mm-Φ1620 mm
Pipe thickness: 5-18 mm (YS≤250MPA)
5-16 mm (YS≤350MPA)
Pipe thread pitch: Max.1900 mm
Pipe weight: Max.8.9 tons
Length: 8.5-12.5 meters
3. Specifications of grinding technology
Molding method: non-continuous production front axle swing type
Molding direction: right feeding, left hand molding
Conveying speed: 0-2.5 meters/minute
Welding speed: 0-2.5 meters/minute
Grinding power supply: 220V/380V, 50HZ
Air compressor: 0.6 Mpa, 0.9 m³/min
Production capacity: 22,000-32,000 tons
4. Machine list
1) Uncoiler (1 unit)
2) Pinch roller and leveler (1 set)
3) Hydraulic vertical roller (2 sets)
4) Cutting and welding (1 set)
5) Edge milling machine (1 unit)
6) Cleaning device (1 set)
7) Manual vertical roller (1 set)
8) Delivery machine (1 unit)
9) Guide beam (1 set)
10) Forming machine (1 unit)
11) Front axle (1 set)
12) Internal welding device (1 set)
13) Out-of-welding device (1 set)
14) Walking platform (1 set)
15) Rear axle (1 set)
16) Cutting (1 set)
17) Centering device (1 set)
18) Hydraulic system and pipeline system
19) Electrical system
