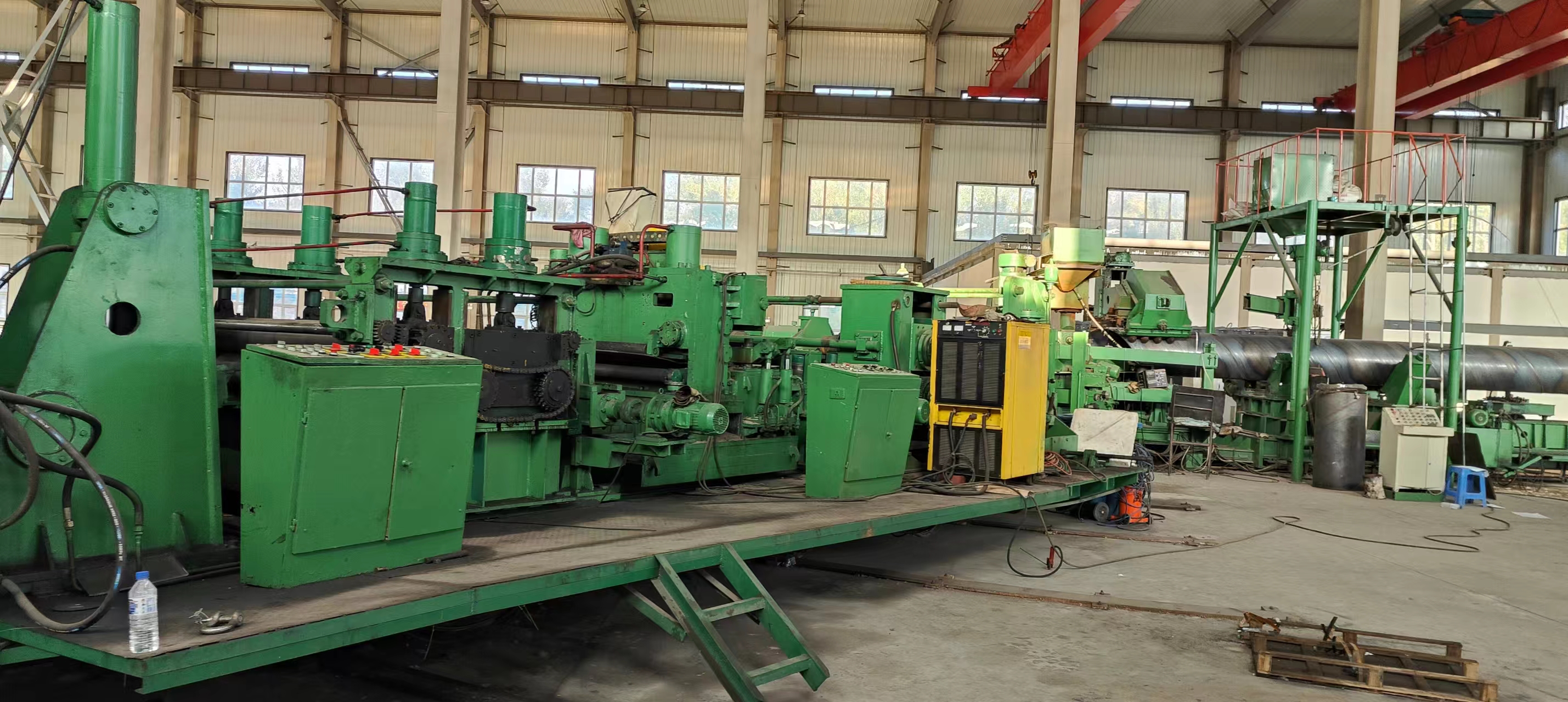

Second hand 1220x12mm Spiral welded pipe machine
Pipe diameter: φ219-φ1220mm, Wall thickness: 4-12mm
1. Coil technical specifications
Material: Q235
Coil thickness: 4-12 mm
Coil width: 500-1250 mm
Coil inner diameter: Φ508-Φ610 mm
Coil outer diameter: Φ1200-Φ1800 mm
Maximum coil weight: 15 tons
2. Pipeline technical specifications
Pipeline outer diameter: Φ219 mm-Φ1220 mm
Pipe thickness: 4-12 mm (YS≤250MPA)
Length: 8.5-12.5 meters
3. Specifications of grinding technology
Molding method: non-continuous production front axle swing type
Conveying speed: 0-2.5 meters/minute
Welding speed: 0-2.5 meters/minute
Grinding power supply: 220V/380V, 50HZ
4. Machine list
1) Uncoiler (1 unit)
2) Pinch roller and leveler (1 set)
3) Hydraulic vertical roller (2 sets)
4) Cutting and welding (1 set)
5) Manual vertical roller (1 set)
6) Delivery machine (1 unit)
7) Guide beam (1 set)
8) Forming machine (1 unit)
9) Front axle (1 set)
10) Internal welding device (1 set)
11) External welding device (1 set)
12) Walking platform (1 set)
13) Rear axle (1 set)
14) Cutting (1 set)
15) Centering device (1 set)
16) Hydraulic system and pipeline system
17) Electrical system
