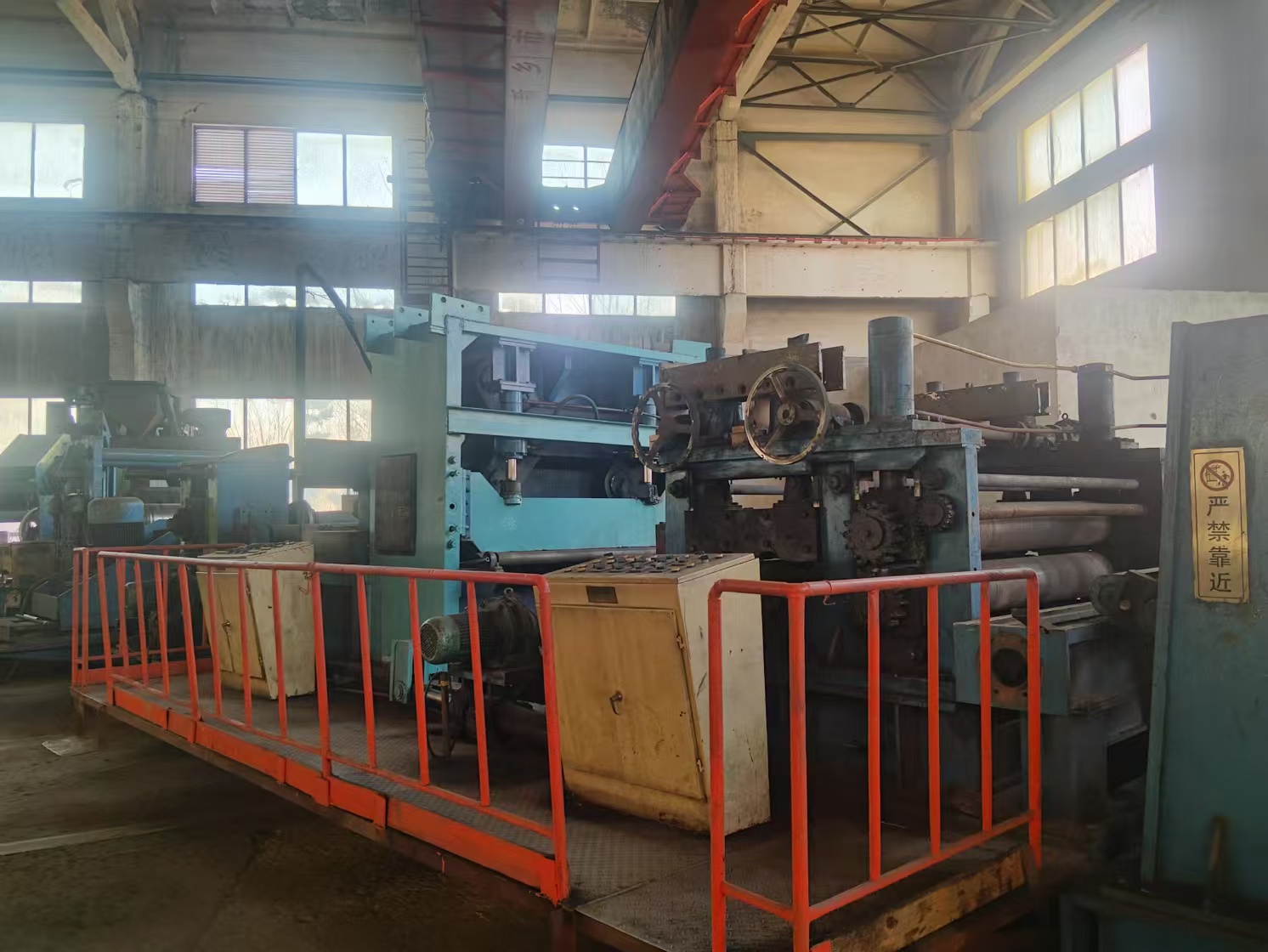

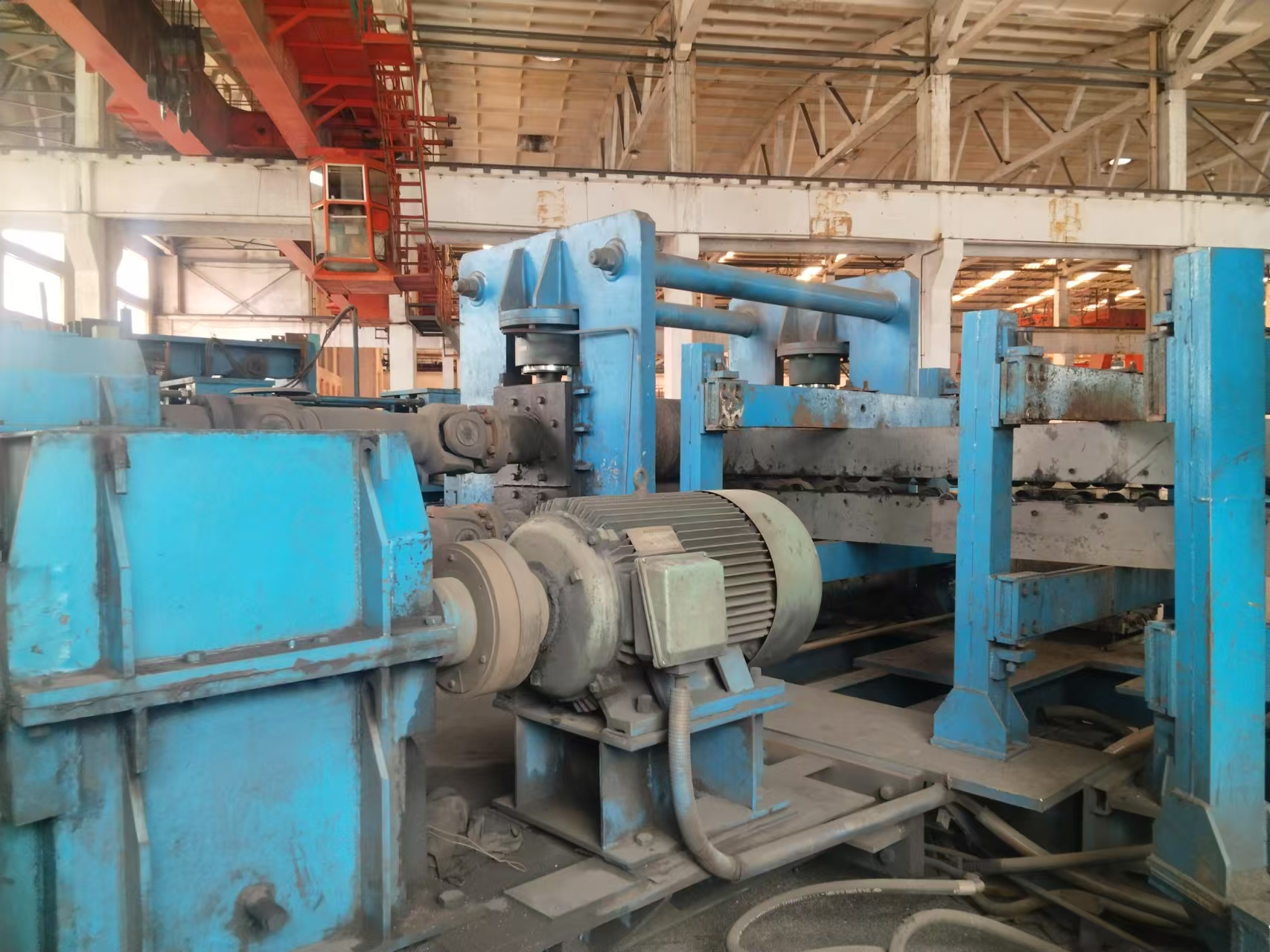

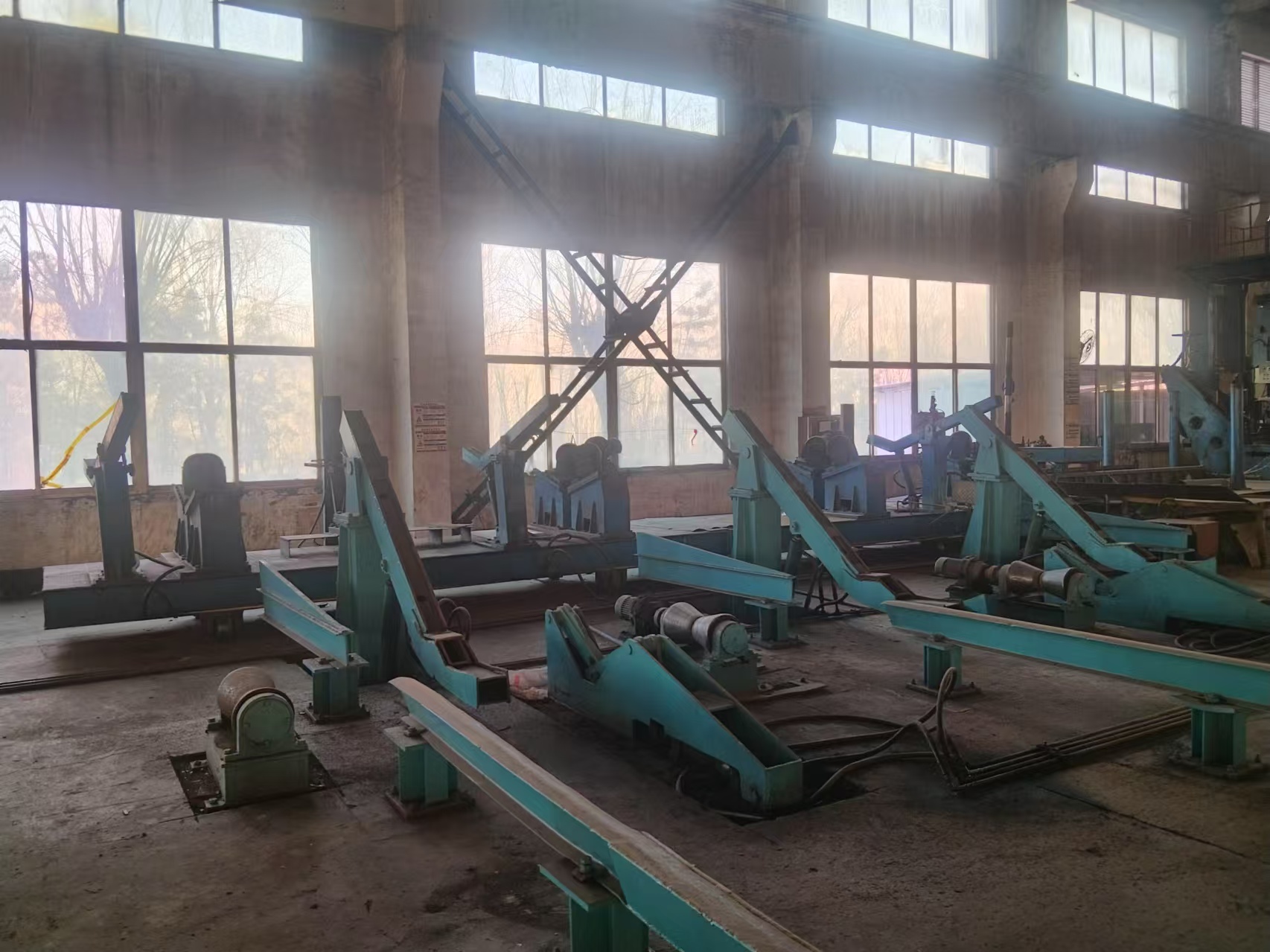

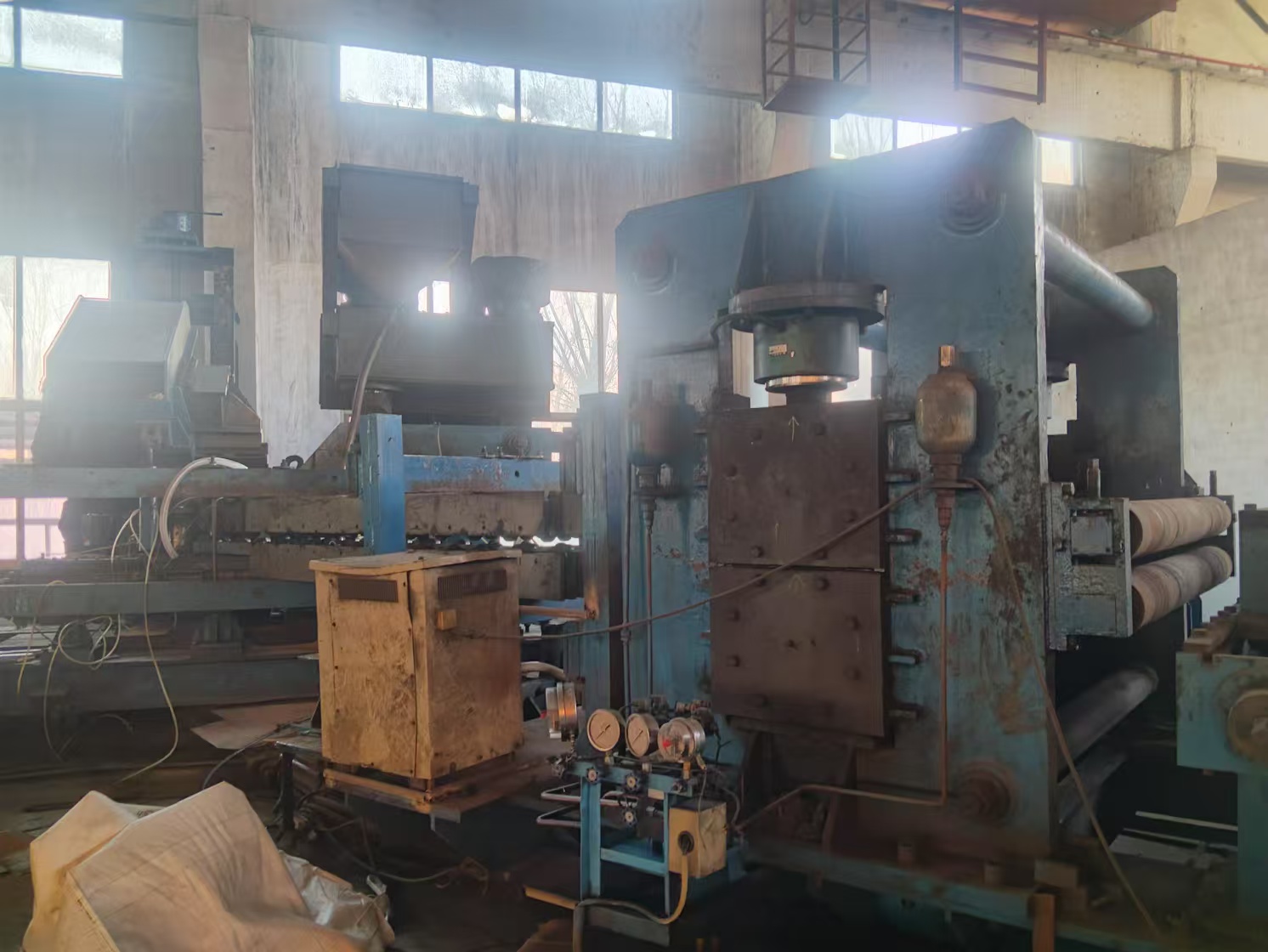

Second-hand 1620×18mm Spiral pipe machine with Beveler and Hydro tester
Pipe diameter: φ426-φ1620mm, Wall thickness: 5-18mm, Steel grade: Q235.
1. Background
Manufacturer: Shanxi, China.
Manufacture year: 2010
Condition: Inline and working condition
Location: China
Including beveler and Hydrostatic tester
2. Pipe specification
Material: Q235 steel grade
Pipe diameter: φ426~φ1620mm
Wall thickness: 5~18mm
Pipe length: 8~12m
3. Coil specification
Steel coil material: Q235 steel grade
Steel coil thickness: 5~18mm
Steel coil I.D.: φ610~φ730mm
Steel coil O.D.: φ1200~φ1800mm
Steel coil width: 700~1500mm
Coil weight: ≤25 Tons
4. Machine list:
1.Uncoiler
2.Peeler
3.Leveler
4.Hydraulic shear and Butt welding
5.Edge trimmer
6.Edge miller
7.Guide roll
8.Deliver
9.Front bridge
10.Forming machine
11.Rear bridge
12.Tracking cutter
13.V-shape guide roll
14.Pipe discharge
15.Electric system
16.Hydraulic system
New Out-source (Optional):
17.Sub-merged welder DC1600 (2 sets)
18.Plasma cutter LGK-200 (1 set)
19.Flux feeding and recycle system (1 set)
20.Flux drying system (1 set)
21.Flux filtrate system (1 set)
22.Electric cables (Provided by user)
