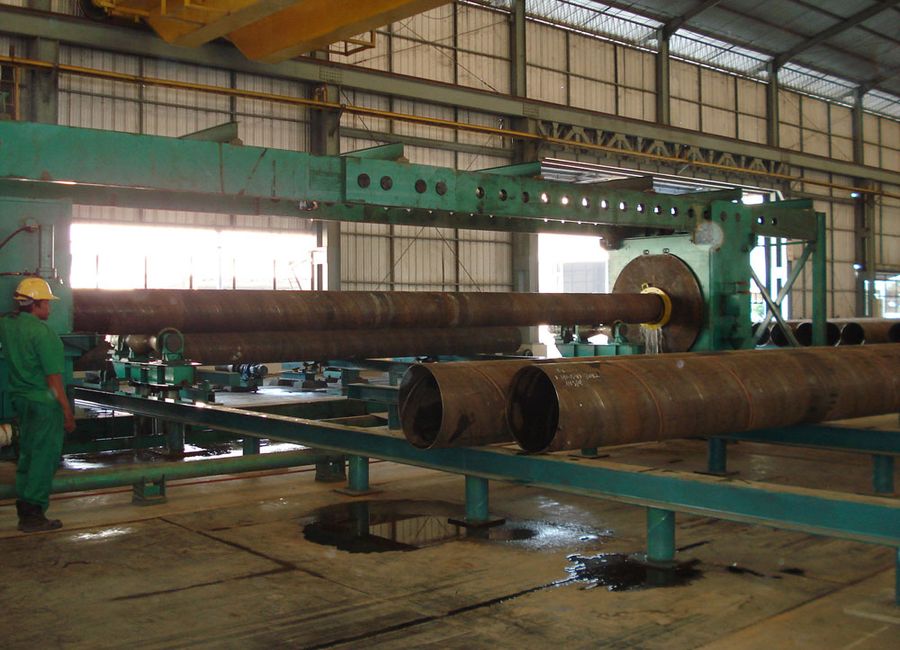

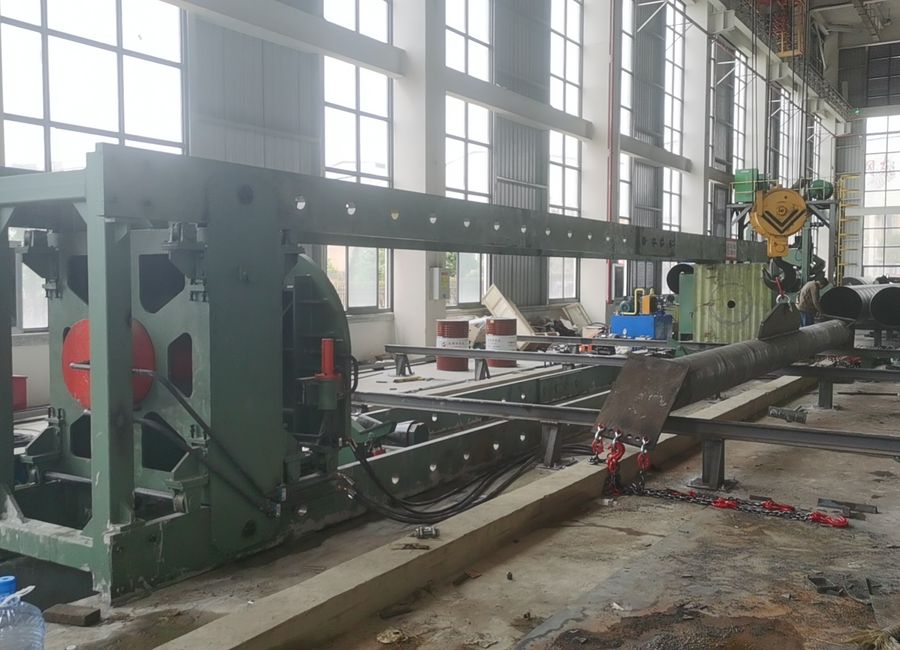

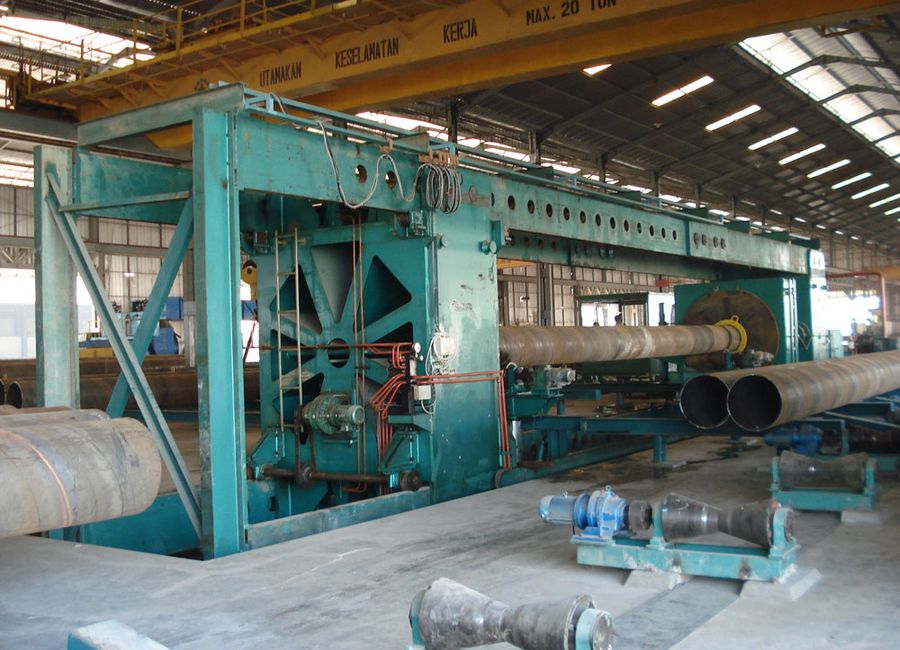

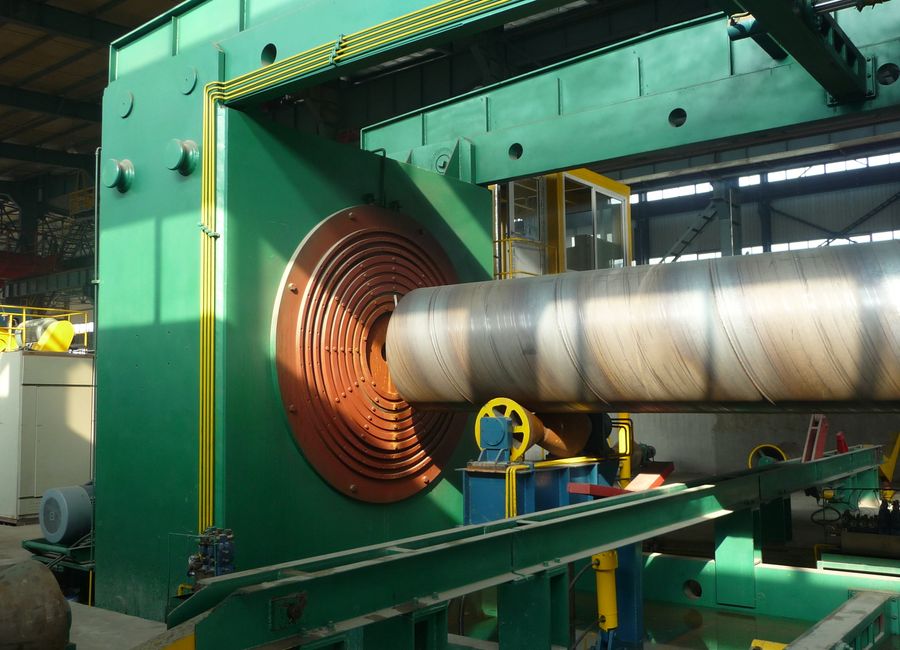

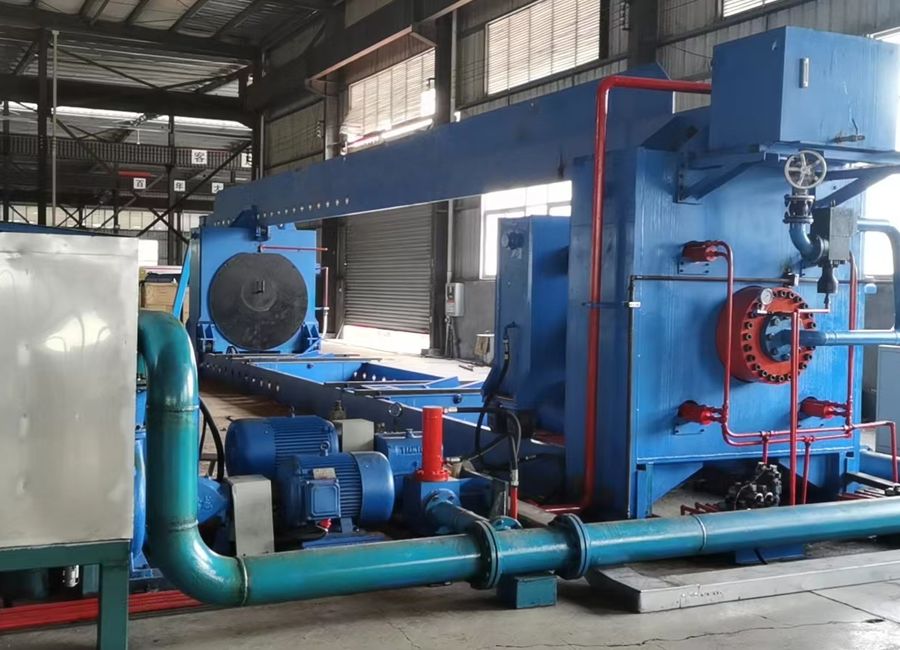

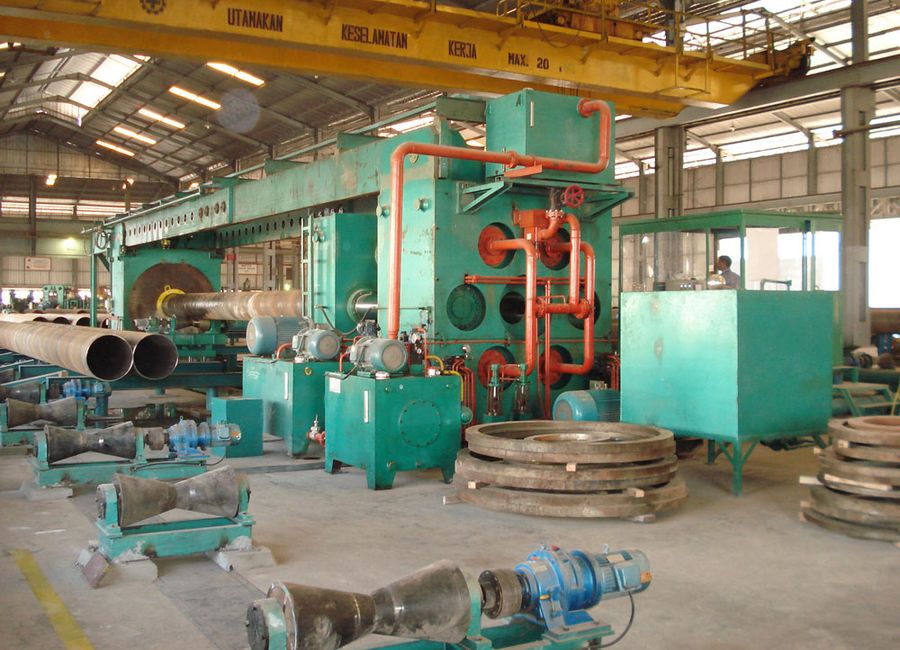

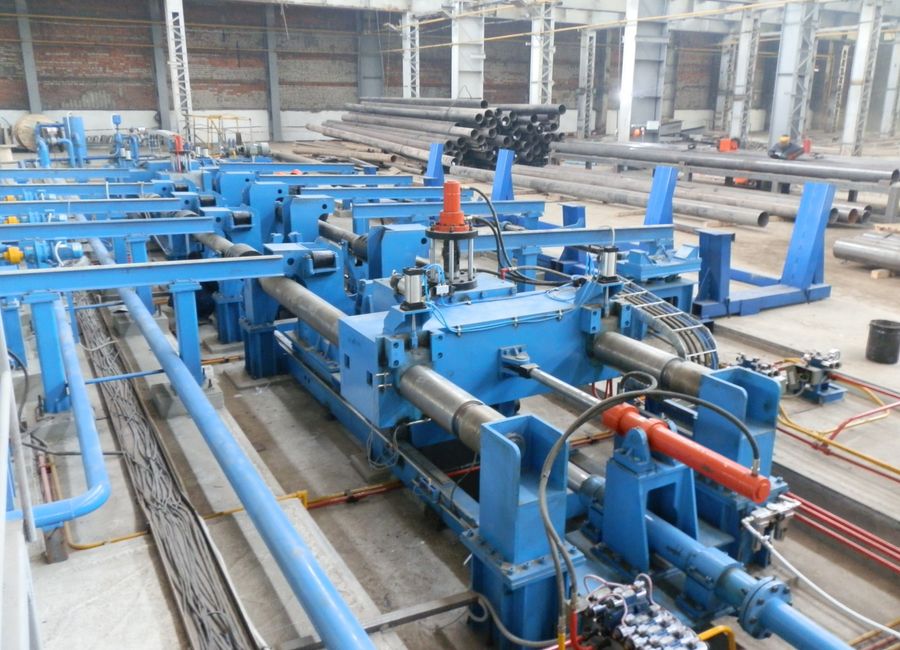

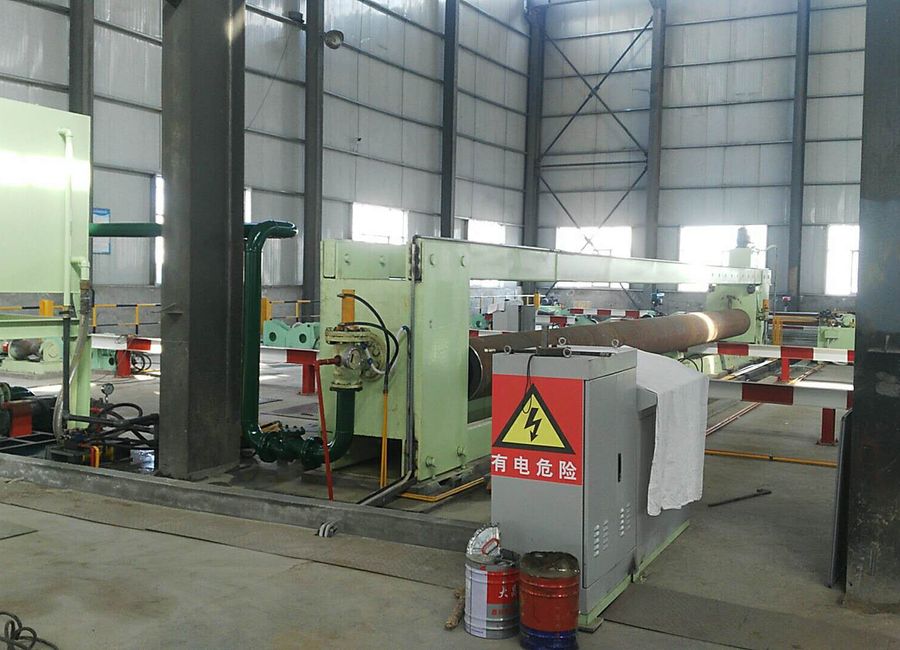

Hydrostatic tester
Full hydraulic hydrostatic testing machine for steel diameter from φ25mm to φ3600mm, is one of main product in our company, which is used for pressure test of steel pipe and stress elimination in pipe body.
Hydrostatic testing machine
Full hydraulic hydrostatic testing machine for steel diameter from φ25mm to φ3600mm, is one of main product in our company, which is used for pressure test of steel pipe and stress elimination in pipe body.
The hydraulic testing machine of our company can be divided into: high pressure and high efficiency hydraulic press used for oil drill pipe and pumping pipe pressure test, and hydraulic press used for spiral welded steel pipe, high-frequency welded steel pipe and ordinary fluid conveying pipe pressure test. From the structure can be divided into: double beams bottom feed type, double beams top feed type, four beam middle feed type. In our hydraulic testing machine products with double beams middle feed type of the highest efficiency, which can be simultaneously on four steel pipe pressure testing, pressure test speed of 100 /h. The salient feature of the middle feeding type of the four beams is that it is suitable for large caliber steel tubes with large pressure testing capacity.
Spiral welded pipe/straight seam submerged arc welding pipe hydraulic press is mainly used for the spiral welded pipe and straight seam submerged arc welding for pressure test, using polyurethane seal and stay inside the large clearance seal two seal forms, equipped with oil and water balance system, computer records, storage, printing, the test result, a high pressure maintaining stability, security, etc.
2. Model list
|
No |
Model |
Testing force (T) |
Spec. (mm) |
Thickness(mm) |
|
1 |
JTS-50 |
3 |
Φ25～Φ50 |
1.0～2.5 |
|
2 |
JTS-76 |
5 |
Φ32～Φ76 |
1.5～3.0 |
|
3 |
JTS-114 |
10 |
Φ50～Φ114 |
1.5～4.0 |
|
4 |
JTS-168 |
25 |
Φ76～Φ168 |
2.0～6.0 |
|
5 |
JTS-219 |
50 |
Φ114～Φ219 |
3.0～9.0 |
|
6 |
JTS-426 |
200 |
Φ219～Φ426 |
3～14 |
|
7 |
JTS-529 |
300 |
Φ219～Φ529 |
3～16 |
|
8 |
JTS-630 |
500 |
Φ219～Φ630 |
3～18 |
|
9 |
JTS-720 |
500 |
Φ219～Φ720 |
3～14 |
|
10 |
JTS-820 |
800 |
Φ219～Φ820 |
3～14 |
|
11 |
JTS-1020 |
800 |
Φ273～Φ1020 |
3～16 |
|
12 |
JTS-1420 |
1000 |
Φ325～Φ1420 |
3～18 |
|
13 |
JTS-1620 |
1500 |
Φ426～Φ1620 |
4～25.4 |
|
14 |
JTS-1820 |
2000 |
Φ508～Φ1820 |
4～25.4 |
|
15 |
JTS-2020 |
2000 |
Φ508～Φ2020 |
4～25.4 |
|
16 |
JTS-2400 |
2500 |
Φ508～Φ2400 |
4～25.4 |
|
17 |
JTS-3000 |
2500 |
Φ610～Φ3000 |
4～25.4 |
|
18 |
JTS-3600 |
2800 |
Φ720～Φ3600 |
4～25.4 |
- 3. Production technology process
Loading pipe — Receive pipe — Filling water — Injection — Pressure keep — Depressurize — Water drain — Pipe out
