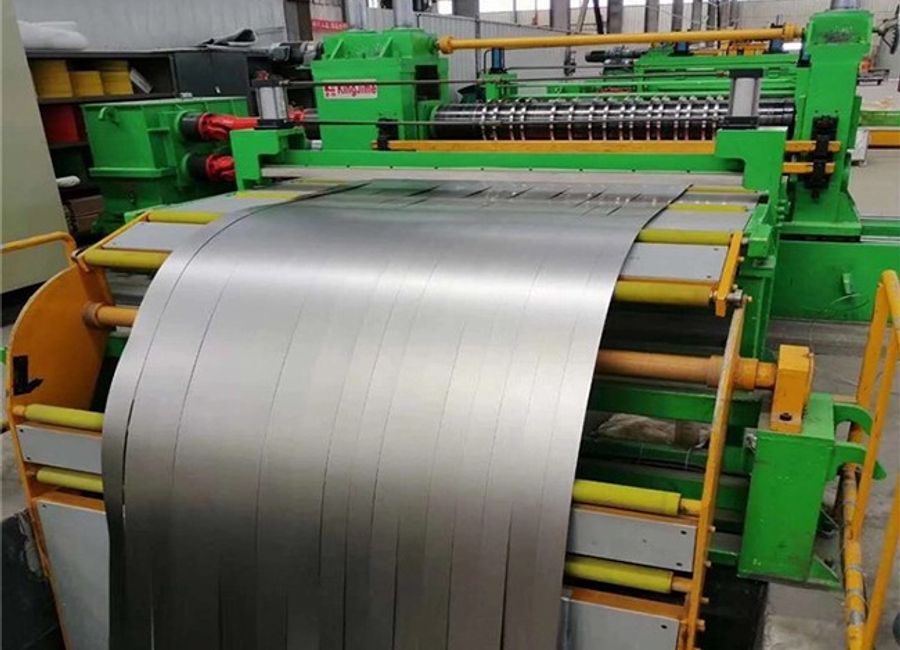

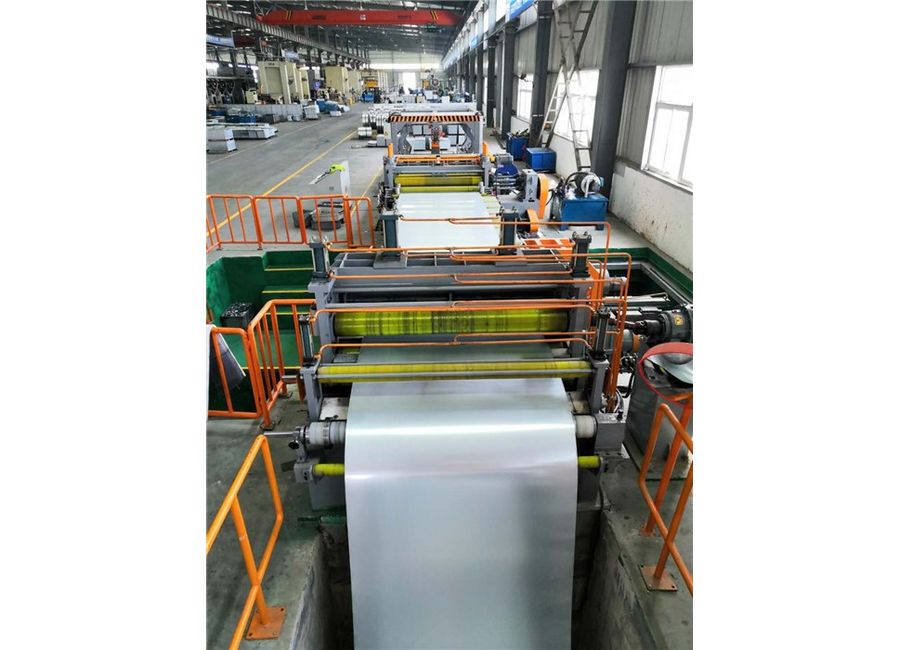

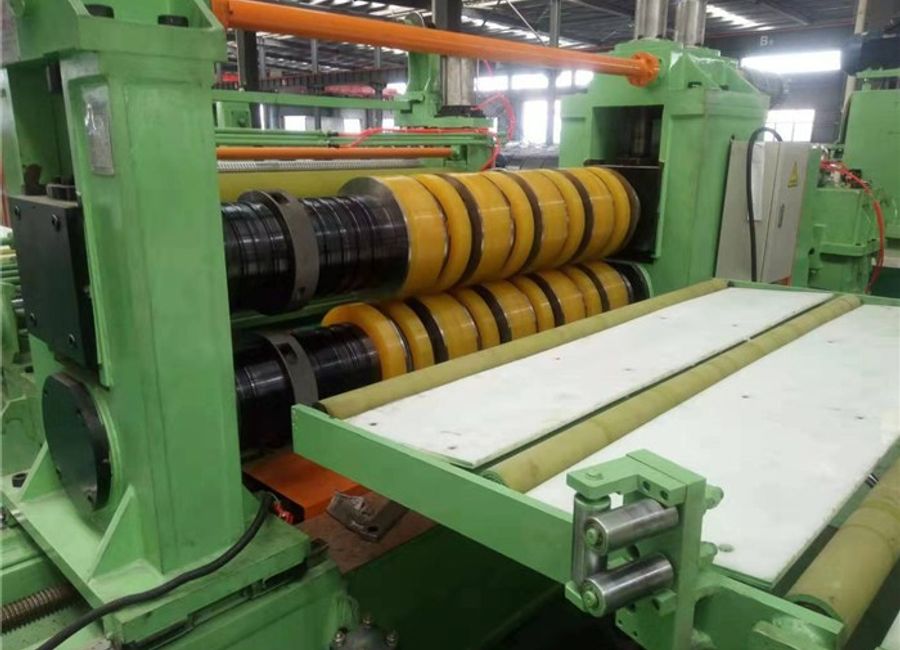

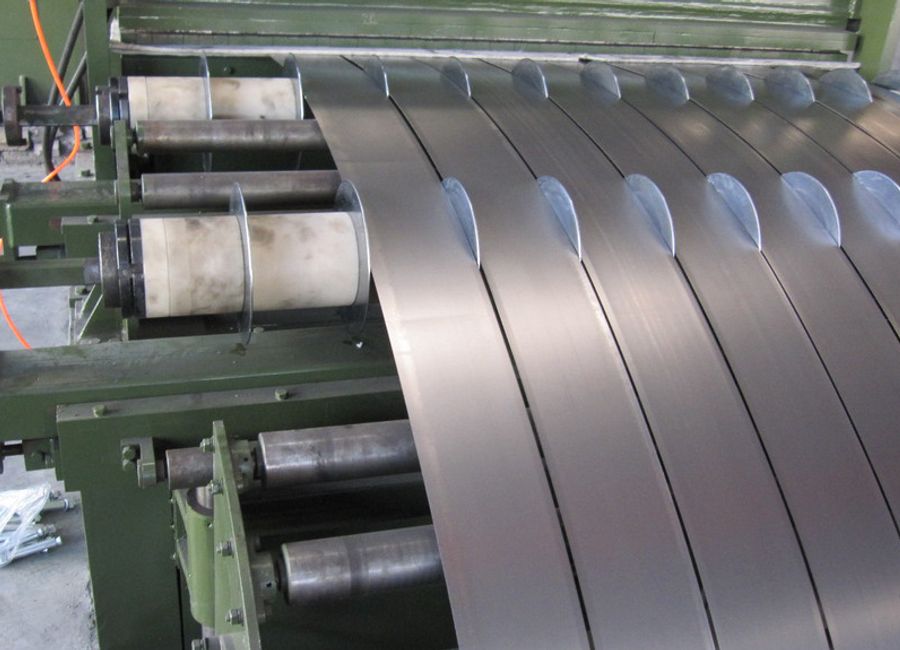

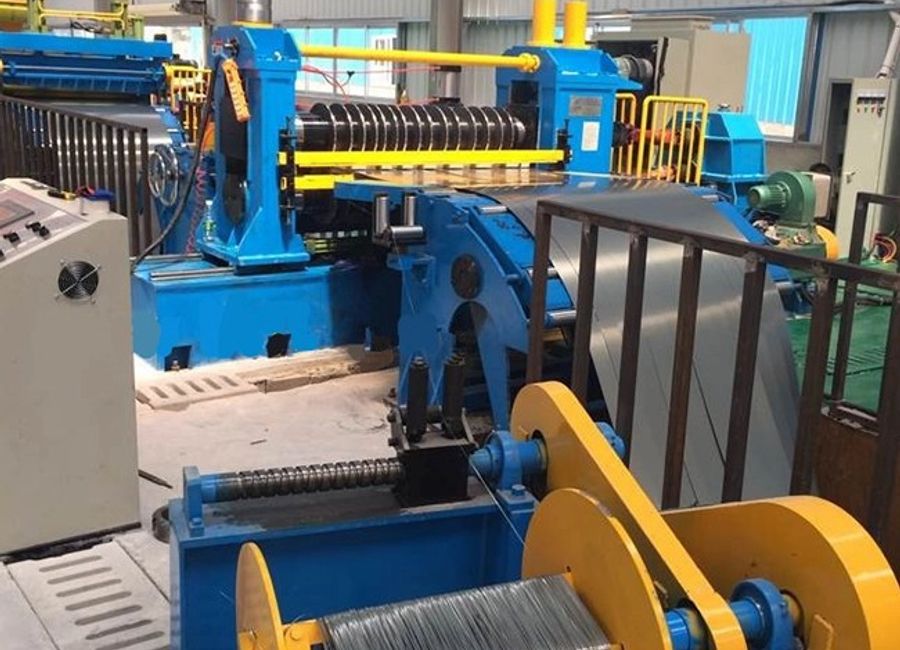

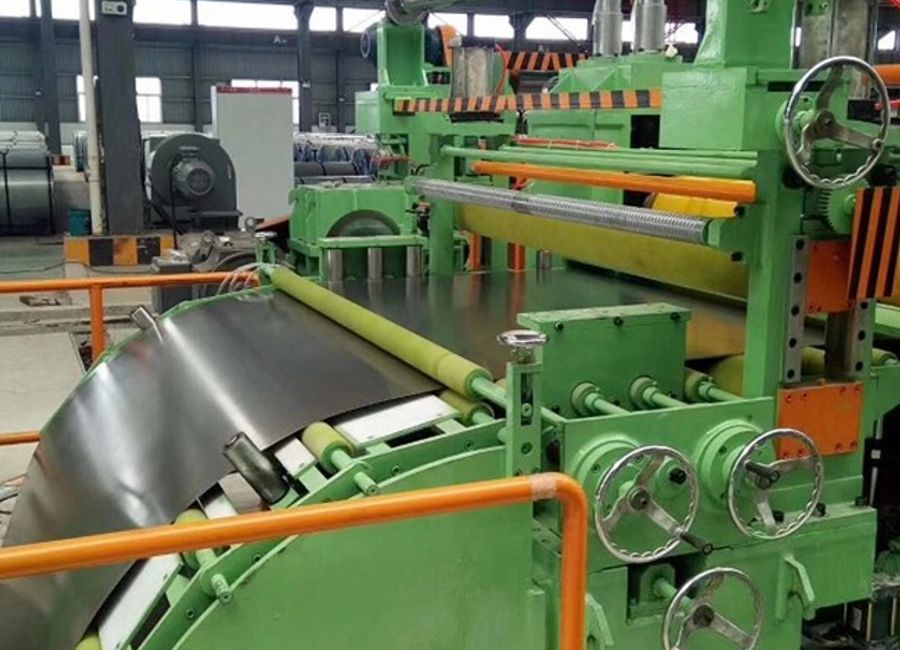

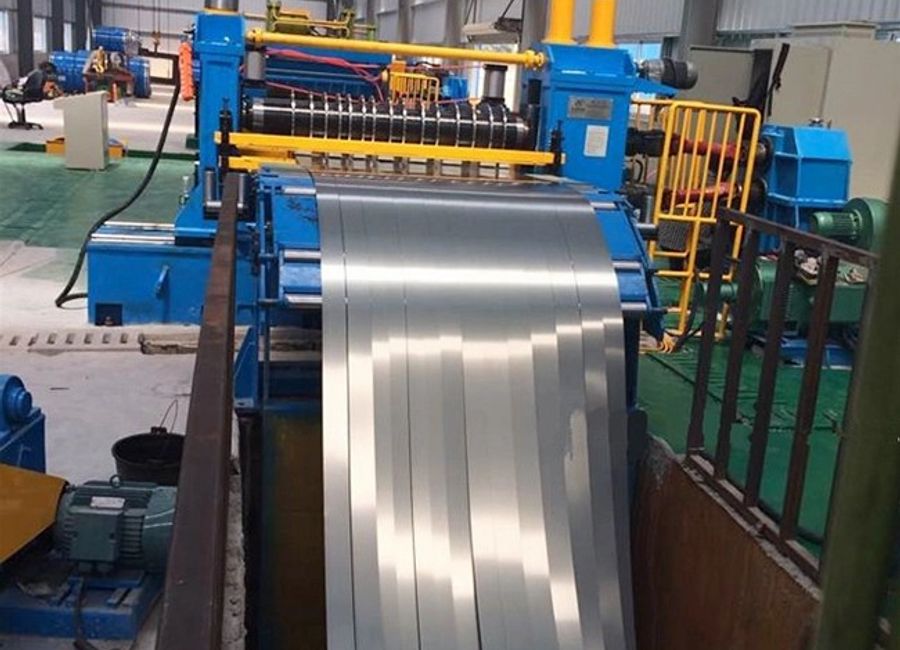

Slitting machine
Slitter is used for decoiling, slitting and recoiling into required width coils, suitable for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and coated metal materials.
- Slitting machine
Slitter is used for decoiling, slitting and recoiling into required width coils, suitable for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and coated metal materials.
The production line is mainly composed of feeding trolley, decoiler, leveler, head shear, slitter, waste rewinder, tension machine, recoiler and discharge device and so on.
● High degree of automation, simple and reliable operation
● Slitter can interchangeover, high efficiency
● Fast speed production line, self-matching unit speed
- Machine model list
|
Model |
Slitting thickness （mm） |
Slitting width（mm） |
Slitted number |
Slitting speed (m/min) |
Coil weight (ton) |
|
JTJ-350×1 |
0.1-1 |
80-350 |
1－8 |
50－100 |
3 |
|
JTJ-350×2 |
0.2-2 |
80-350 |
2－10 |
50－150 |
3 |
|
JTJ-450×2 |
0.2-2 |
80-450 |
2－12 |
50－150 |
5 |
|
JTJ-650×2 |
0.2-2 |
80-650 |
2－15 |
50－150 |
7 |
|
JTJ-800×2 |
0.2-2 |
80-800 |
6－30 |
50－150 |
7 |
|
JTJ-1300×1 |
0.1-1 |
500-1300 |
12－30 |
50－200 |
7/15 |
|
JTJ-1600×2 |
0.3-2 |
500-1600 |
12－30 |
50－200 |
7/15 |
|
JTJ-1600×3 |
0.3-3 |
500-1600 |
8－30 |
50－180 |
15 |
|
JTJ-1800×3 |
0.3-3 |
900-1800 |
8－30 |
50－180 |
20 |
|
JTJ-1600×4 |
1-4 |
900-1600 |
6－30 |
50－120 |
20 |
|
JTJ-1600×6 |
1-6 |
900-1600 |
6－30 |
30－80 |
30 |
|
JTJ-1600×12 |
2-12 |
900-1600 |
5－30 |
20－50 |
30 |
