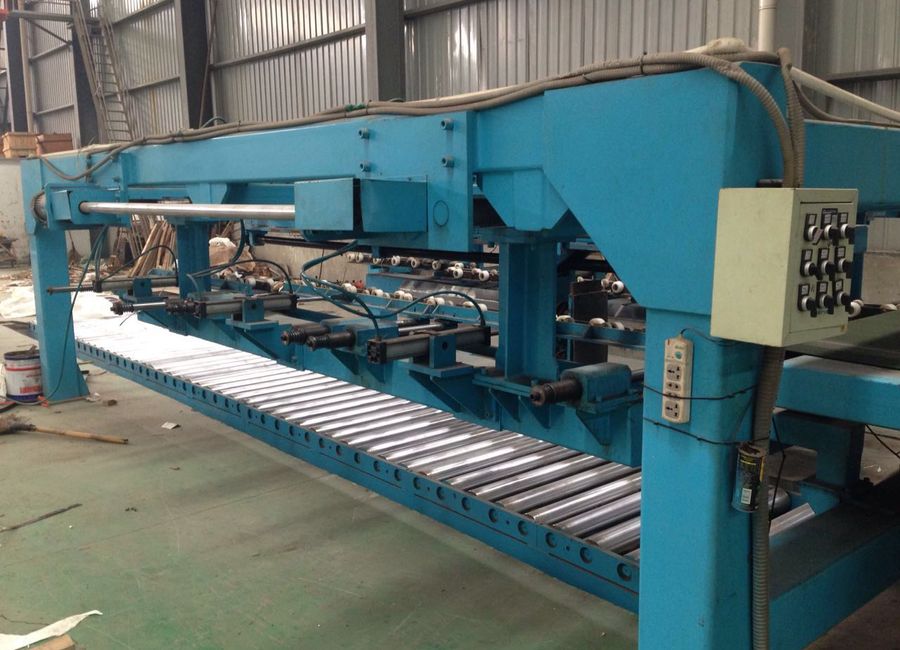

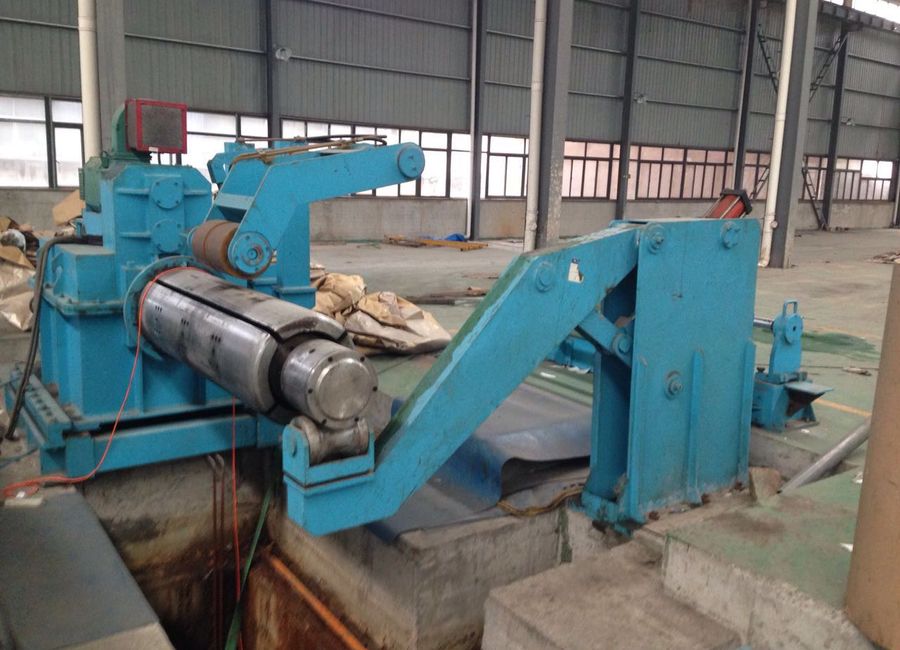

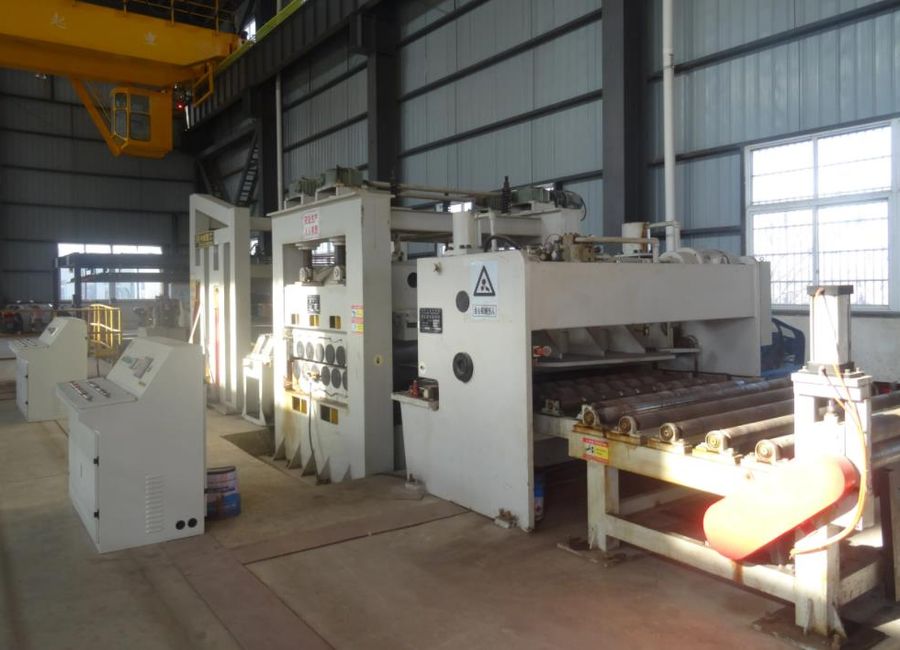

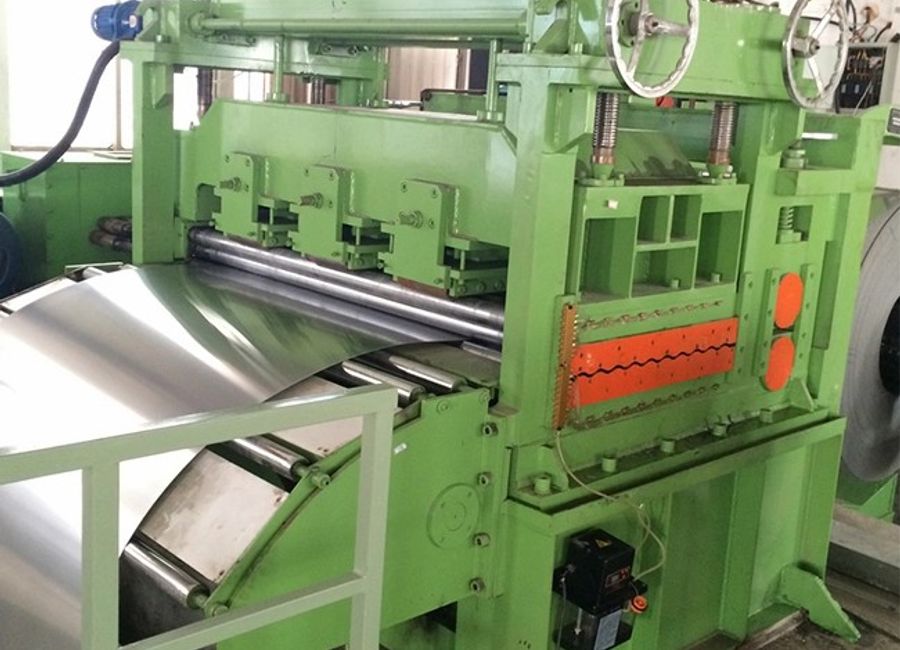

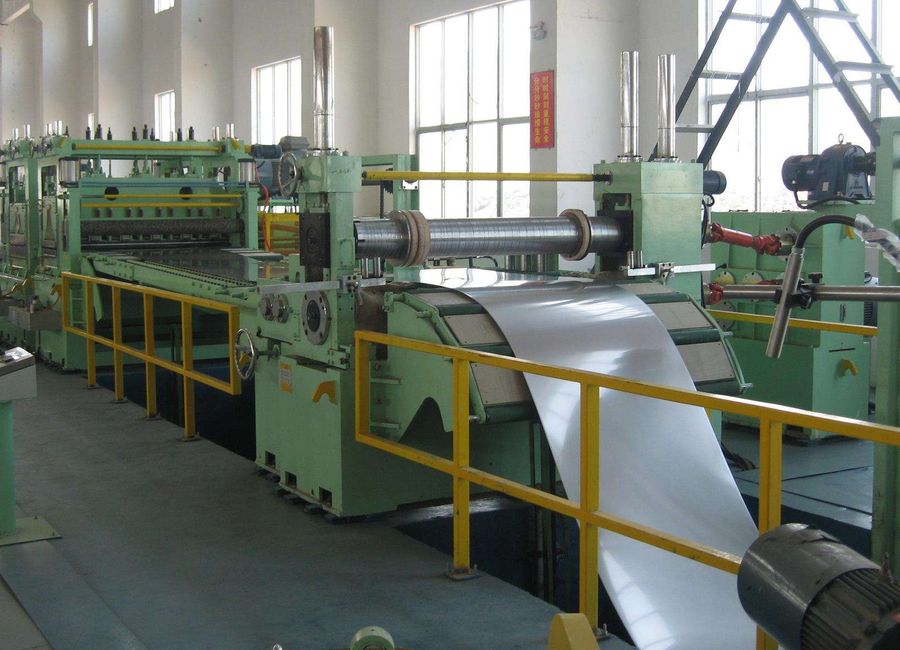

Cut to length machine
CTL is used for decoiling, leveling, length measure and cutting metal coils into flat sheets of required length and stacking.
- Cut to length machine
CTL is used for decoiling, leveling, length measure and cutting metal coils into flat sheets of required length and stacking. Suitable for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and coated metal materials.
The production line is mainly composed of feeding trolley, decoiler, leveling machine, feeding device, shear, conveyor, stacking device and so on. The slitting machine can be also configured in the production line to cut and stack the sheet material into the required width and length. It is a high performance product integrating machine, electric and hydraulic.
● High degree of automation, simple and reliable operation
● High precision of fixed length, high flatness of sheet
● Stacking neatly
- Machine model list
|
Model |
Working thickness (mm) |
Working width (mm) |
Shearing precision (mm) |
Max. working speed (m/min) |
Coil weight (ton) |
|
JTH-650×2 |
0.3-2.0 |
100-650 |
±0.3 |
70 |
7 |
|
JTH-800×2 |
0.3-2.0 |
100-800 |
±0.3 |
70 |
7 |
|
JTH-1600×2 |
0.2-2 |
500-1600 |
±0.3 |
60 |
15 |
|
JTH-1800×2 |
0.2-2 |
900-1800 |
±0.3 |
50 |
20 |
|
JTH-1600×3 |
0.5-3 |
500-1600 |
±0.3 |
50 |
15 |
|
JTH-1800×3 |
0.5-3 |
900-1800 |
±0.3 |
50 |
20 |
|
JTH-2000×3 |
0.5-3 |
900-2000 |
±0.3 |
45 |
30 |
|
JTH-1600×6 |
1-6 |
900-1600 |
±1 |
25 |
20 |
|
JTH-2000×6 |
1-6 |
900-2000 |
±1 |
25 |
30 |
|
JTH-2000×8 |
2-8 |
900-2000 |
±1 |
20 |
30 |
|
JTH-2000×12 |
3-12 |
900-2000 |
±1.5 |
20 |
30 |
|
JTH-2000×16 |
4-16 |
900-2000 |
±2 |
15 |
30 |
