• Cold rolling forming machine

Cold roll forming machine is made up of material feeding machine, forming machine and cutter, the color plate’s appearance is smooth and beautiful, uniform painting, high strength, durable, widely used in industrial and civil buildings, such as factory buildings, warehouses, stadiums, exhibition halls, theaters and other rooms and walls.

Cold roll forming machine includes of roll forming machine, PLC computer control system, hydraulic system and automatic cutting system, the machine characteristics: the machine adopts a high level of automatic control software, and achieve production information management.

• Classification

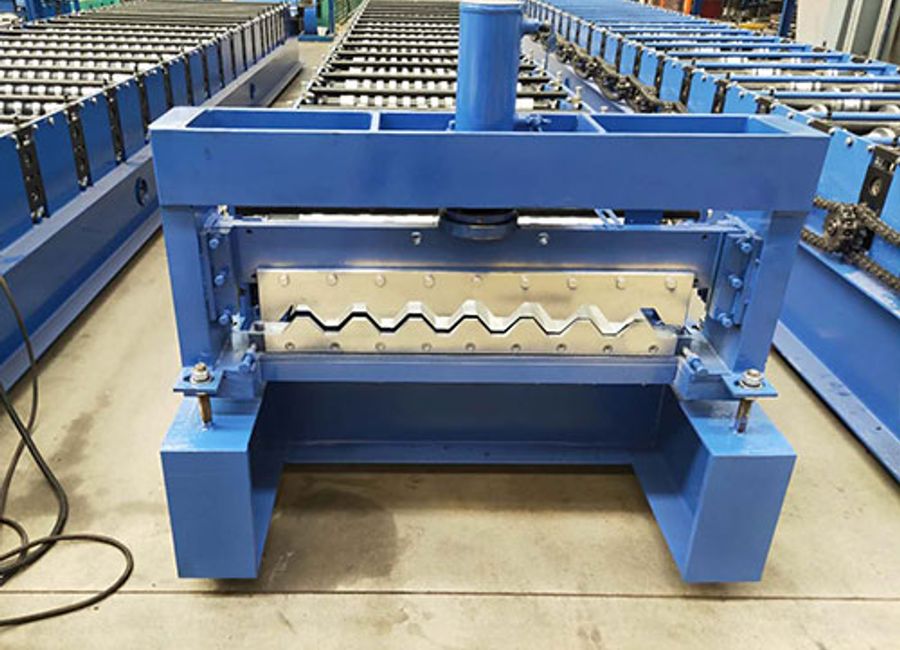

1. Wave roll forming machine

Wave roll forming machine is specially used to produce wave tile machine.

Wave tile products are widely used in industrial plants, warehouses, greenhouses, stations, docks, airports, sports buildings, commercial buildings, steel structures and many structures.

2. Color steel tile roll forming machine

Color steel tile roll forming machine refers to the use of cold rolling process of color coated steel plate rolling forming, according to the production of different products can include: Angle chi machine, glazed tile machine, C type steel machine, Z type steel machine, color steel composite plate machine.

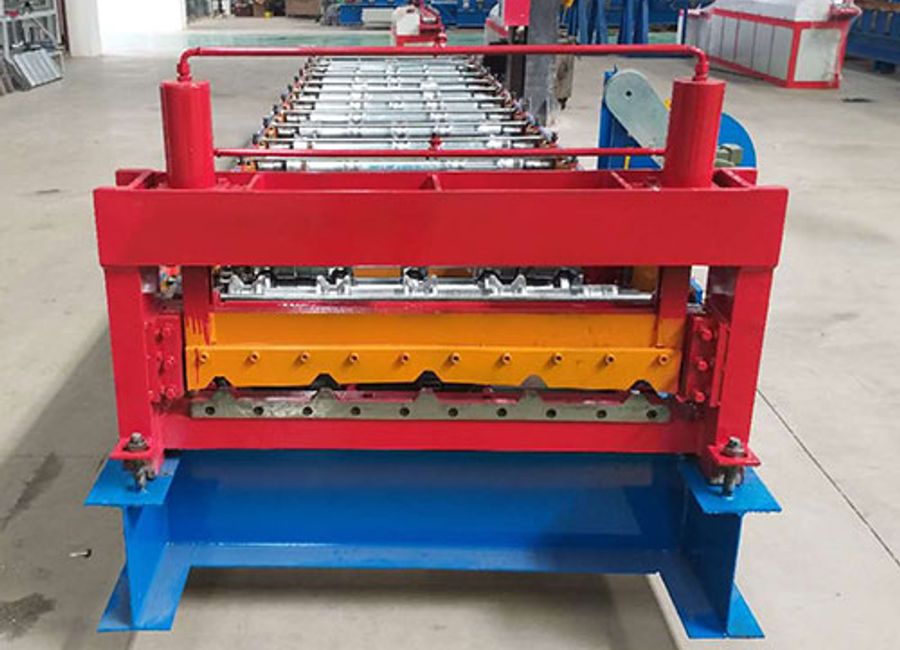

3. Trapezoid roll forming machine

Trapezoid roll forming machine is widely used all kinds of industrial plants, housing, warehouse and simple steel hut surface production and beautiful generous.

This machine is mainly composed of feeding platform, forming machine, shear device, hydraulic system and computer control system.

Trapezoidal tile machine includes complete machine, PLC computer control system, shear system, hydraulic system.

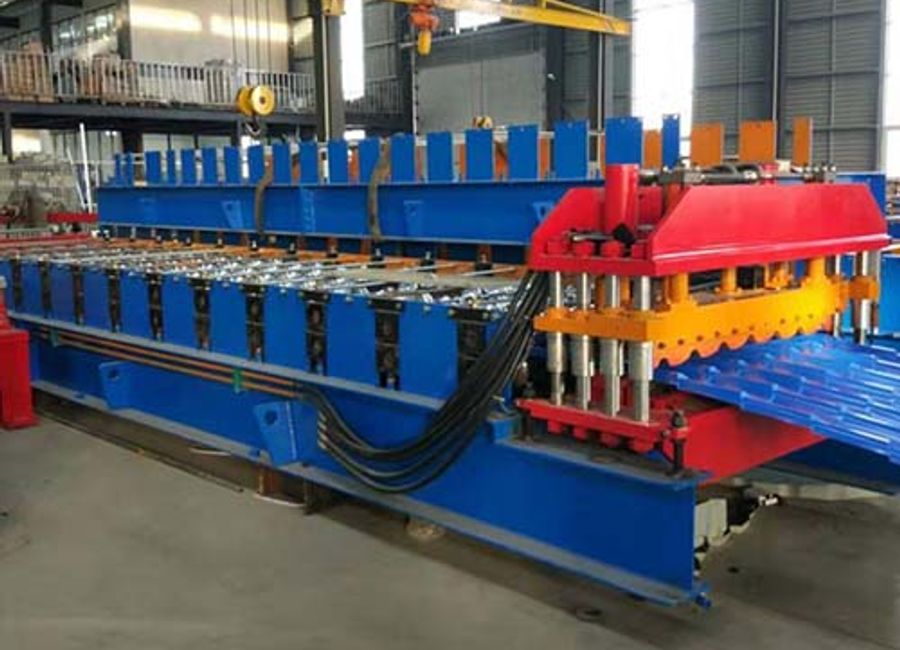

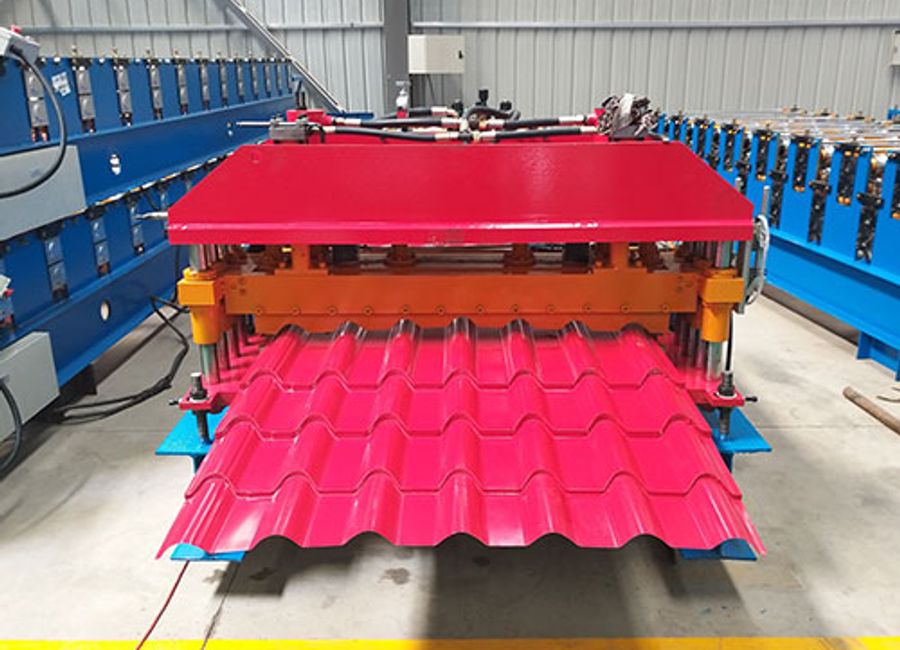

4. Glazed tile roll forming machine

Glazed tile roll forming machine, is used to produce glazed tile machine, From the external structure, glazed tile machine is composed of loading rack, loading rack support, feeding guide device, forming machine, punching device, shear, hydraulic system, computer control cabinet and other parts.

Glazed tile machine is divided into 3 parts, roller table forming part, pressing part, cutting part. The forming part of glazed tile machine roll table driven by motor, and the chain drives each roll to rotate. The pressing part of glazed tile machine is that hydraulic cylinder drives the mold to move up and down, which can press the colored steel into many sections, resembling glazed tile.

5. Carriage plate roll forming machine

Carriage plate roll forming machine is mainly used to produce carriage board, container board, etc, according to the thickness of plate, width, peak height to design custom.

Suitable for 0.4-1.5mm, wide 1200mm galvanized or color steel coil bending molding, typical products are steel structure, decoration, automobile, environmental and other industries.

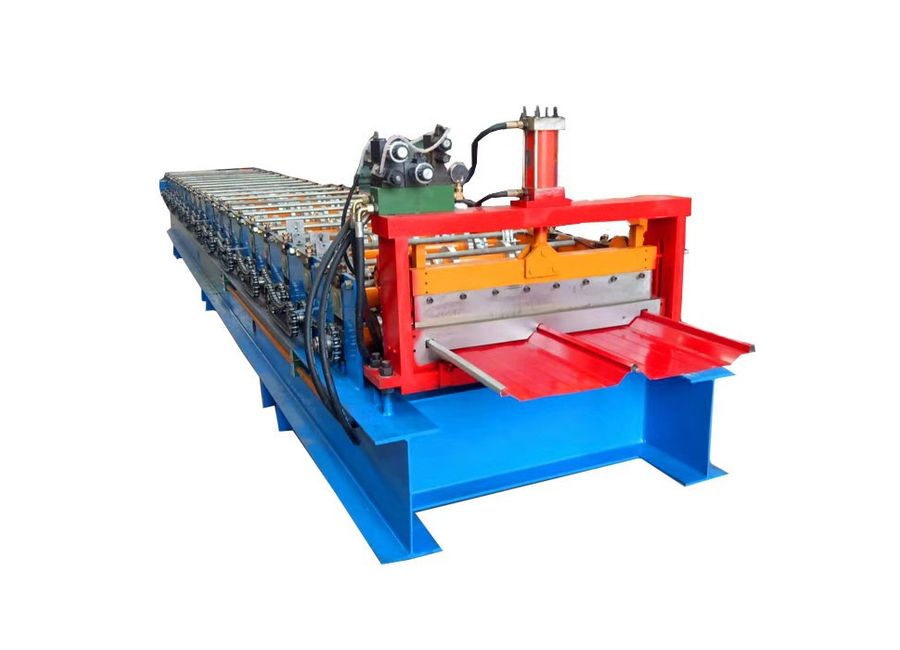

6. Angle chi roll forming machine

Angle chi 820 production of roll forming to solve the conventional series of roof leakage problems, 820 roll forming machine connections broke the traditional roof with screw connection convention, installation method color with 45 degrees of bite installation.

All kinds of roof panel and wall panel produced by model 820 angle tile roll forming machine have excellent anti-leakage performance compared with ordinary roof panel and wall panel. At the same time, it can make beamless arch roof with arch lifting machine. Debug with conventional gauge or plug gauge. The rolled plate by the machine is not only solemn and elegant, but also beautiful and novel, with smooth appearance, even ripple, high strength, high degree of production automation and low cost.

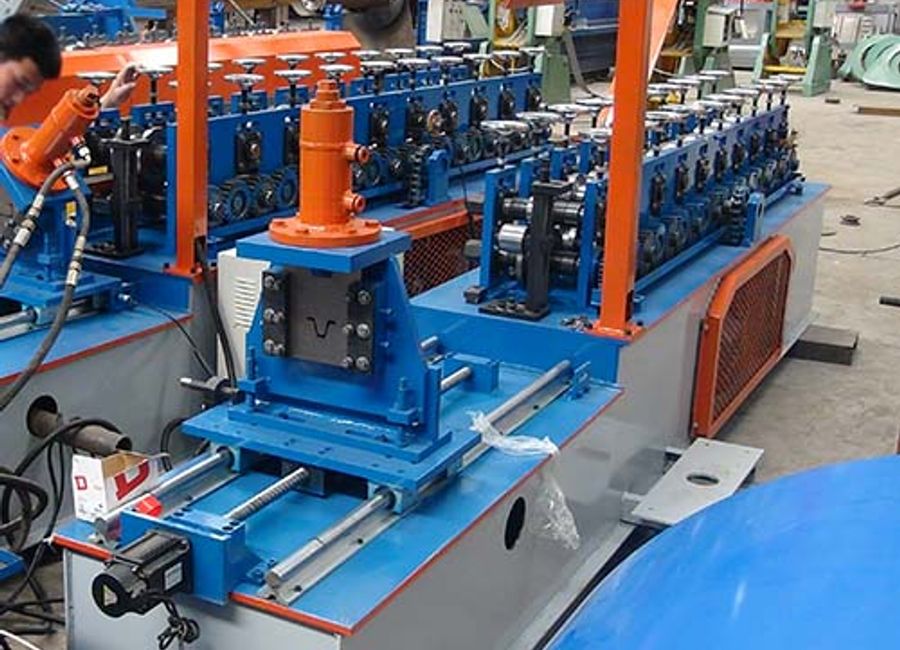

7. Light steel keel machine

Light steel keel machine is strip steel as raw material, through continuous cold rolling forming, production of complex section profiles (products are light steel keel, paint keel, clip keel, various building profiles, steel structure, steel lining door frame profiles, high speed shield, etc.) and different specification of cold bending, paint unit machine , using PLC control.

Light steel keel machine as a building celling material, in world, very popular, using it to decorate the celling appearance of fashion, personality.

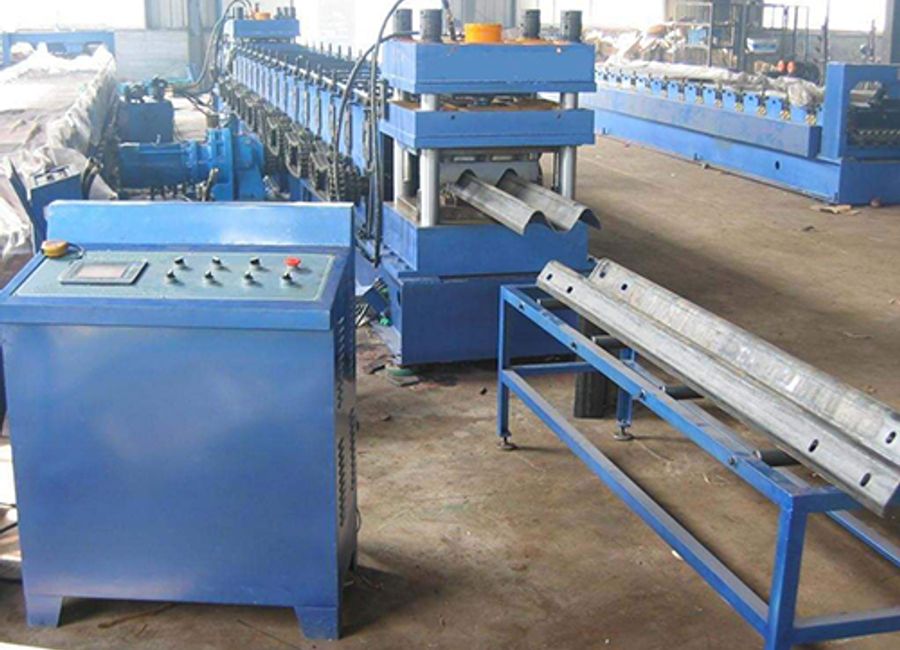

8. High speed guardrail machine

High speed guardrail machine with its production efficiency and characteristics has won the praise of many users, using computer operation panel, touch screen display, easy to operate, suitable for all kinds of guardrail manufacturers.

High speed guardrail machine is mainly composed of decoiler, leveler, punching machine, forming machine, shear, electric system, hydraulic station and other parts.

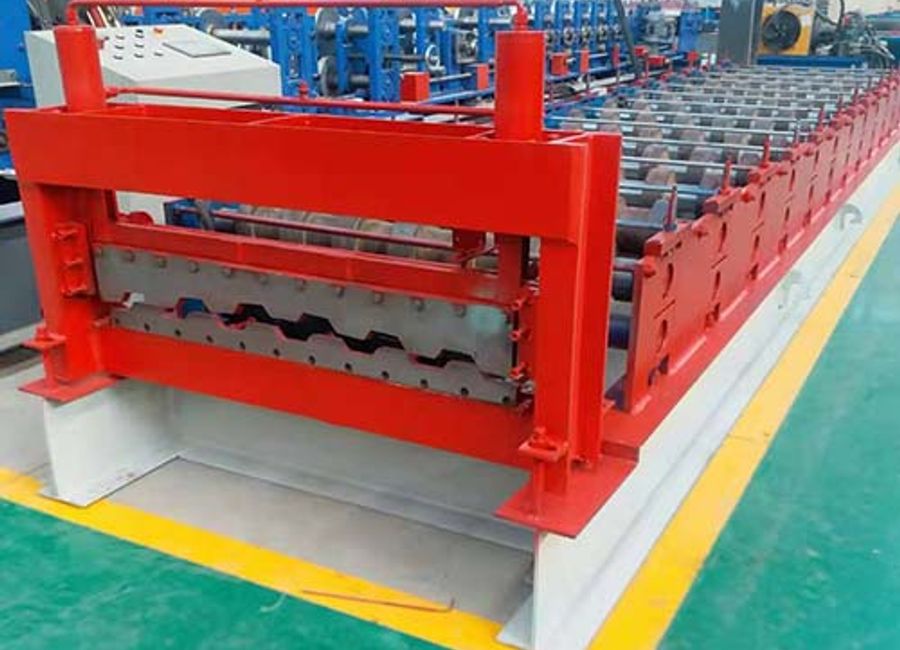

9. Floor support roll forming machine

Floor support roll forming machine is used for high rise floor panels; It has the characteristics of high wave peak, high strength, high automation and low cost.

Floor support roll forming machine is production of steel plate shape concise, waviness, and shop when installation, buy welded steel fabric after combined with concrete view field irrigation, good adhesion, can both save the steel template in high rise buildings, and can reduce load, floor before reaching equivalent capacity, reduce steel weight of project, so as to save investment.

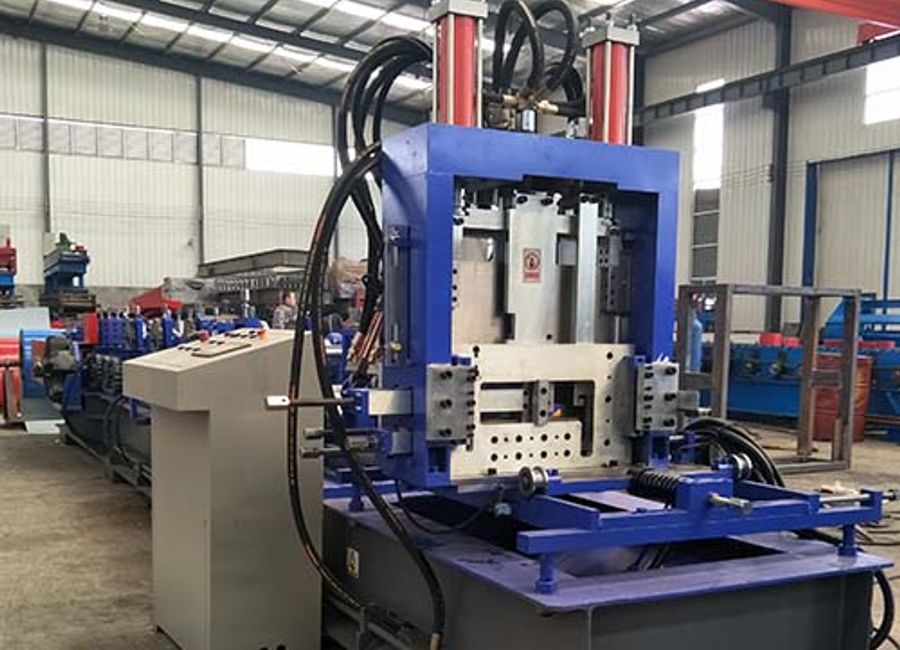

10. CZ structural steel machine

CZ purlin machine, is the C-type machine and Z-type machine into one tile roll forming machine, for the user can be controlled by PLC computer in a short time as 2 types of various specifications of purlin exchange production of high automation purlin forming machine. Automatic C and Z reciprocal purlin machine automatic control of production process, no need to change the forming roll when changing specifications, changed the use of C and Z two different equipment processing C and Z two different purlin history, save a lot of investment cost and space for users.
