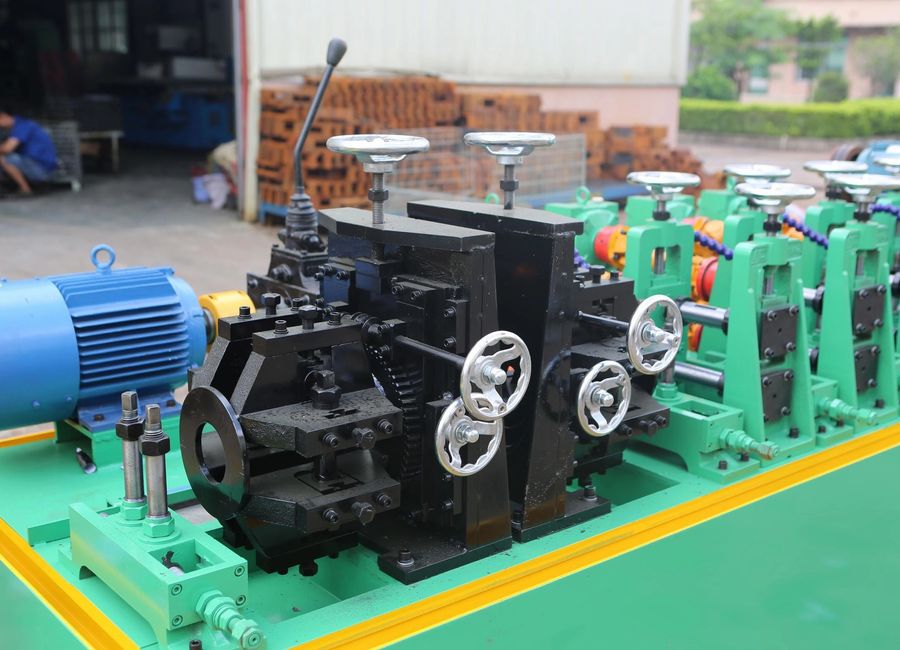

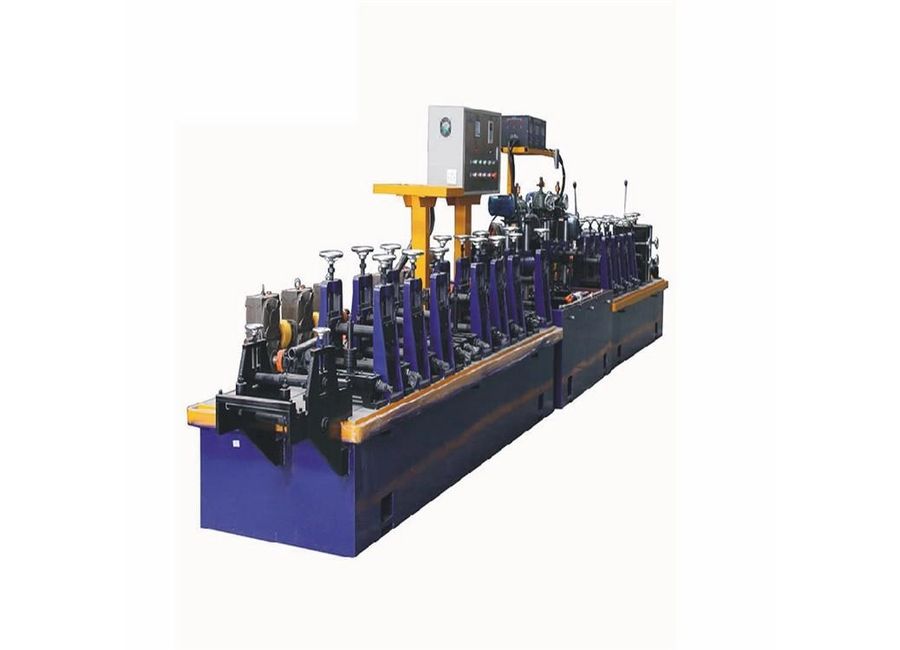

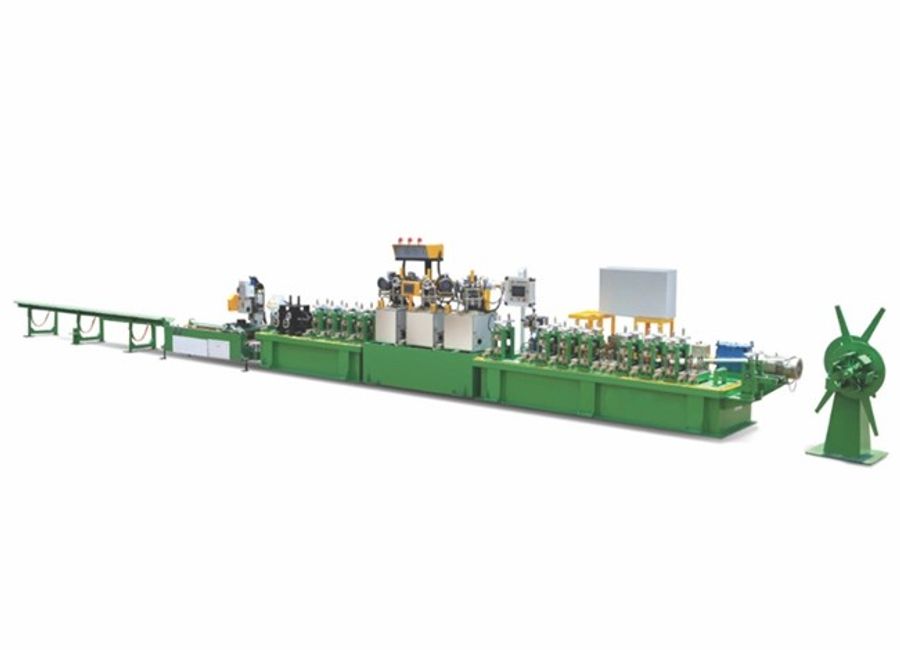

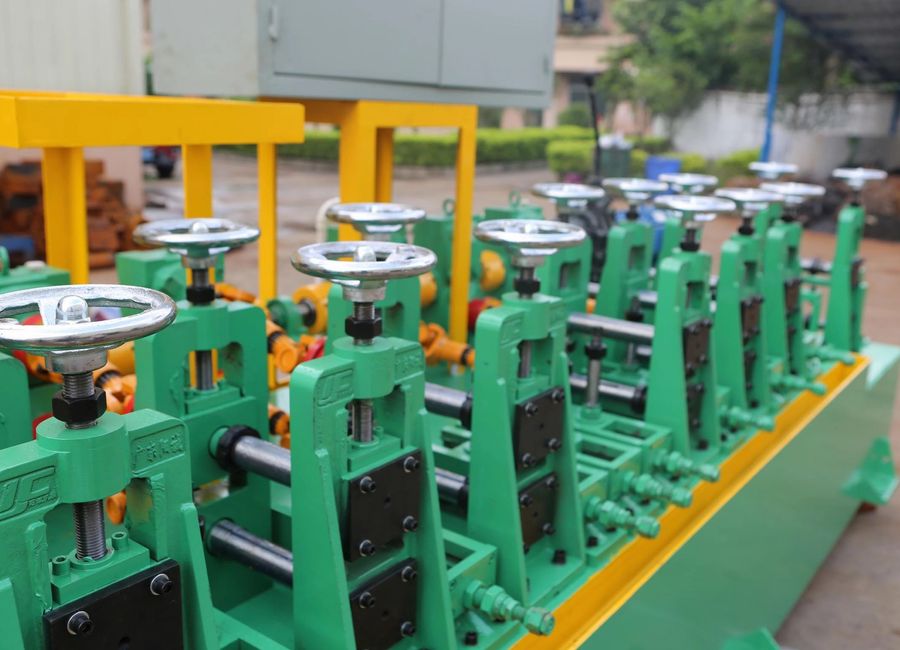

Stainless steel decorative pipe machine
Prepared — Forming machine — Welding — Internal flat — Polish — Bright annealing — Sizing machine — Straightener — Discharge
- Working flow
Prepared — Forming machine — Welding — Internal flat — Polish — Bright annealing — Sizing machine — Straightener — Discharge
- Production introduction
1. Stainless steel decorative pipe machine application:
Stainless steel decorative tube machine is mainly used for the production of stainless steel tube for decoration, products and home appliances, the series of units can also produce oval tube, half circle tube, plum tube and other special-shaped tubes after forming and then pulling out round tubes, square tube and rectangular tube. Such as stainless steel stair handrails, anti-theft doors and windows, electric heating tubes, etc.
2. Stainless steel decorative pipe machine feature:
High precision pipe is stable performance, high yield, full automation, sample operation, durable, sturdy machine, continuous production, high efficiency, less materials waste, low production cost.
3. Automated production process:

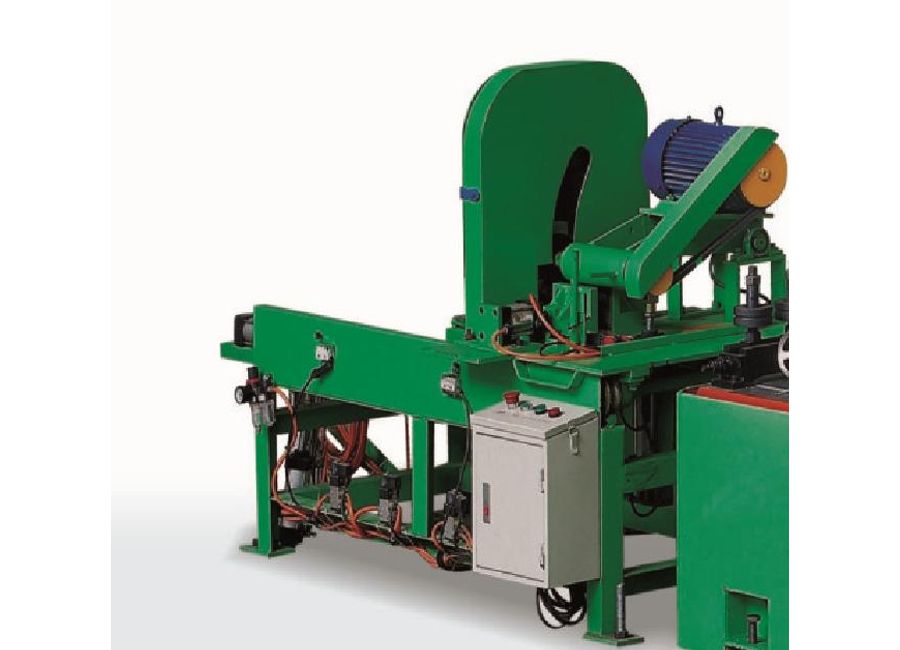

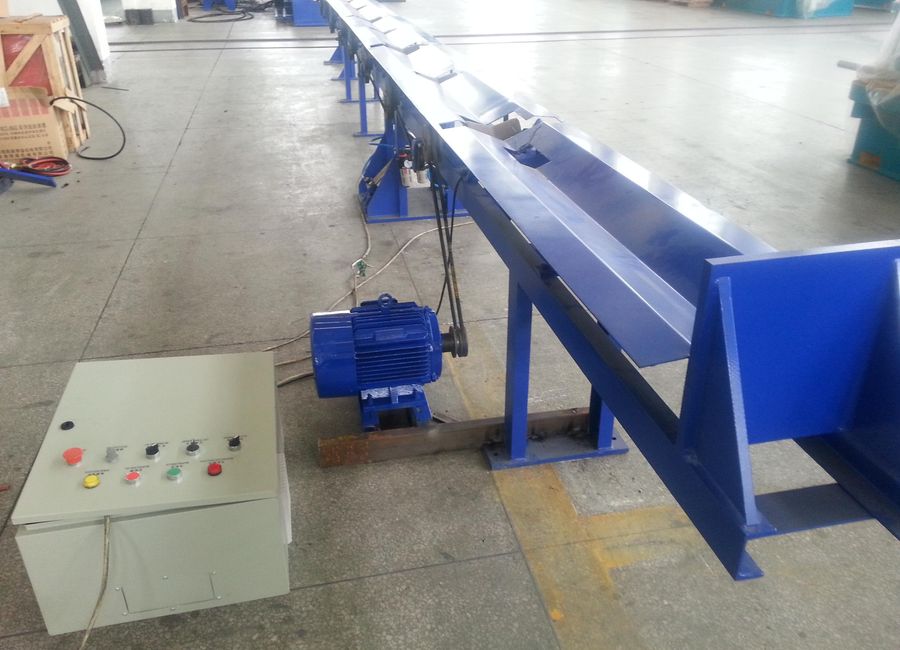

After decoiling, cleaning device, feeding guide, forming, welding, internal welding leveling, external weld grinding, shaping sizing, sold melting treatment, final sizing, straightening, flaw detection, coding, sizing, cutting saw, discharge and other continuous molding process, fine structure, easy operation.
- Technical parameter
| Model |
Horizontal shaft (mm) |
Vertical shaft (mm) |
Pipe Dia. (mm) |
Pipe thickness (mm) |
Motor power (KW) |
Overall dimension (L×W) |
Speed (m/min) |
|
JTB25 |
40 |
25 |
8-25 |
0.2-1.5 |
4×2 |
20×1.03 |
3-20 |
|
JTB40 |
40 |
25 |
9.5-42 |
0.2-1.2 |
4×2 |
20.5×1.03 |
2.5-10 |
|
JTB50 |
40 |
25 |
12.7-50.8 |
0.2-1.8 |
4×4.5 |
21.5×1.06 |
2.5-10 |
|
JTB60 |
40 |
25 |
12.7-63.5 |
0.2-2.0 |
7.5×2 |
22.3×1.08 |
2.5-10 |
|
JTB76 |
50 |
30 |
38-76.2 |
0.4-2.5 |
7.5×11 |
23×1.29 |
1.5-8 |
|
JTB114 |
60 |
40 |
76.2-114 |
0.5-2.5 |
11×15 |
25×1.36 |
1-5 |
|
JTB159 |
80 |
50 |
114-159 |
1.0-4.5 |
22×2 |
34×2.85 |
1-3 |
|
JTB325 |
100 |
65 |
159-325 |
1.0-6.0 |
30×35 |
50×3.3 |
1-3 |
