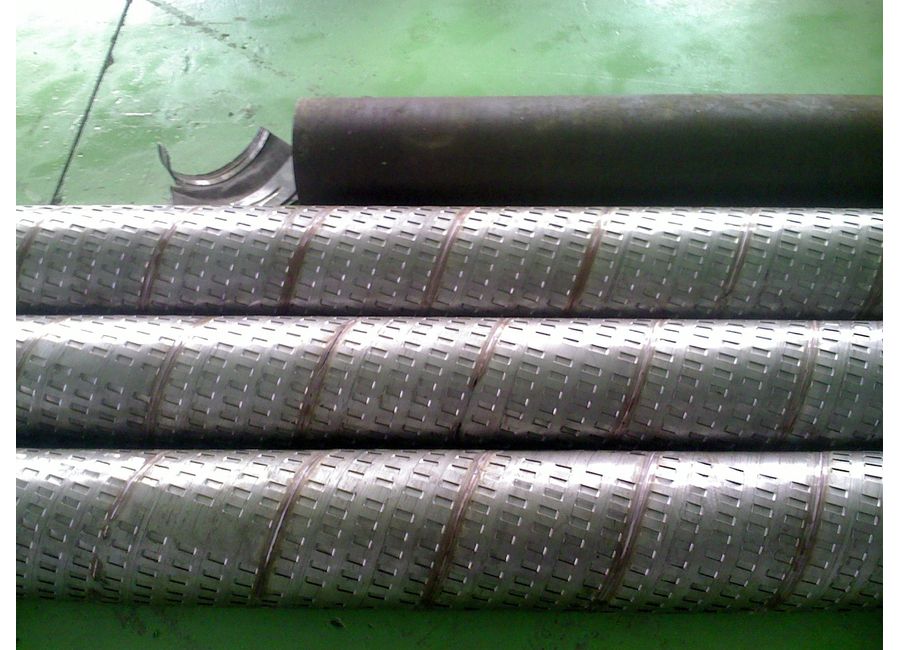

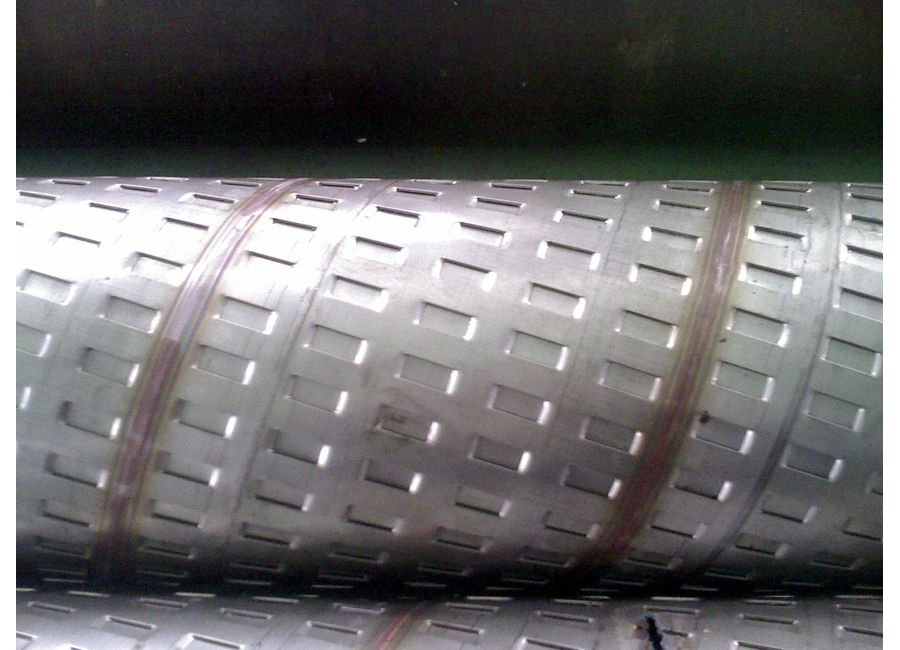

Water filter Spiral pipe mill
Pipe diameter：Φ150～Φ820mm Pipe thickness：2.5 ～8.0mm Pipe thread pitch：Max 1550mm Pipe length：6～12m
|
Materials parameter |
|
|
Materials Coil thickness Strip width Coil I.D. Coil O.D. Strip error range Coil weight |
Q235 2.5 ～8.0 mm 750 mm Φ508～Φ610 mm Φ1000～Φ1800 mm ≤±5 mm ≤10 t |
|
Pipe parameter |
|
|
Pipe diameter Pipe thickness Pipe thread pitch Pipe length Pipe standard |
Φ150～Φ820 mm 2.5 ～8.0 mm Max 1550 mm 6～12 m GB/T5037 |
|
Mill parameter |
|
|
Mill type Forming direction Forming type Forming angel Deliver speed Welding speed Welder Welding type |
Discontinuous production, Central positioning Right hand forming 3-roll bend forming, out roll control sizing 40°～80° 0.5～2.5 m /min 0.5～2.0 m /min Submerged arc welding Inner / outer welding |
|
Production technology process |
|
|
Loading coil — Decoiler — Leveling — Shear and butt welding — Edge trimmer — Servo feeding — Punching machine — Deliver machine — Guiding — Forming — Inner welding — Outer welding — Tracking cutting — Discharge |
|
